NSN 5920-00-510-7620
Part Details | RECEPTACLE FUSEHOLDER
5920-00-510-7620 A fuseholder which is specifically designed to accommodate one or more FUSE, PLUG. Excludes FUSEHOLDER, BLOCK.
Alternate Parts: 8719, 5920-00-510-7620, 00-510-7620, 5920005107620, 005107620
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-510-7620 | 28910 ( FUSEHOLDER, RECEPTACLE ) |
REFERENCE DRAWINGS & PICTURES

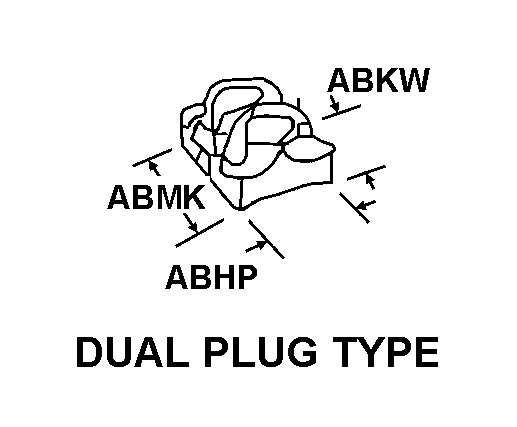

DUAL PLUG TYPE
IN-LINE ALONG THE LENGTH
Cross Reference | NSN 5920-00-510-7620
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8719 | 75582 | LEVITON MANUFACTURING CO., INC.DBA LEVITON |
Technical Data | NSN 5920-00-510-7620
| Characteristic | Specifications |
|---|---|
| FUSE ACCOMMODATION QUANTITY | 2 |
| CURRENT CARRYING RATING IN AMPS | 30.0 |
| VOLTAGE IN VOLTS | 125.0 |
| TERMINAL TYPE AND QUANTITY | 4 SCREW |
| CONTACT MATERIAL | COPPER |
| BODY STYLE | DUAL PLUG TYPE |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| OVERALL WIDTH | 2.625 INCHES NOMINAL |
| MOUNTING HOLE STYLE | IN-LINE ALONG THE LENGTH |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.750 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.250 INCHES NOMINAL |
| INTERNAL CIRCUIT CONFIGURATION AND POLE QUANTITY | 2 POLE, MAINLINE, FUSED |
