NSN 5920-00-467-5215
Part Details | OPEN LINK FUSE
5920-00-467-5215 A fuse in which the element is not inclosed. It does not contain an alarm indication of the element being severed. See also FUSE LINK, ELECTRICAL and FUSE, INCLOSED LINK.
Alternate Parts: AST25, AST2-5, B12.5, B1-2.5, B12.5, B1-2.5, 5920999706855, 5920-99-9706855, 5920-00-467-5215, 00-467-5215, 5920004675215, 004675215
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 08, 1970 | 00-467-5215 | 14927 ( FUSE, OPEN LINK ) |
REFERENCE DRAWINGS & PICTURES

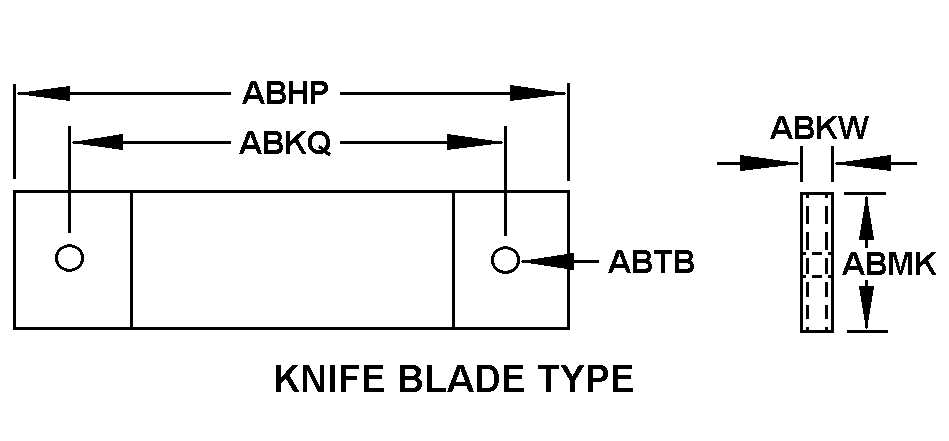

KNIFE BLADE TYPE
Cross Reference | NSN 5920-00-467-5215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AST2-5 | K2995 | GE POWER CONTROLS LTD |
| B1-2.5 | K0377 | GOODRICH ACTUATION SYSTEMS LTD |
| B1-2.5 | K0655 | LUCAS AEROSPACE LTD ELECTRONICSYSTEMS & EQUIPMENT DIV |
| 5920-99-9706855 | 99995 | NATO STOCK NUMBER ASSIGNEDBY ANOTHER NATION |
Technical Data | NSN 5920-00-467-5215
| Characteristic | Specifications |
|---|---|
| BODY STYLE | KNIFE BLADE TYPE |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.062 INCHES NOMINAL |
| OVERALL WIDTH | 0.188 INCHES NOMINAL |
| CONTINUOUS CURRENT RATING IN AMPS | 2.500 |
| MAXIMUM VOLTAGE RATING IN VOLTS | 300.0 AC |
| CIRCUIT OVER-CURRENT INTERRUPTION TYPE | NORMAL INSTANTANEOUS |
| INTERRUPTION INDICATOR METHOD | OPAQUE BODY |
| TERMINAL SURFACE TREATMENT | NICKEL PLATED |
| CASE MATERIAL | FIBER |
