NSN 5915-01-212-0306
Part Details | CAPACITOR-RESISTOR
5915-01-212-0306 An item consisting of one or more capacitors and one or more resistors molded together, housed together in a common case, or mounted on a common board. The individual capacitors and resistors are not separable and the overall item usually has various design applications; hence, cannot be considered a subassembly. Do not use if more applicable item names, such as FILTER (as modified), or NETWORK (as modified), exist.
Alternate Parts: SMC951552, SM-C-951552, RC951552, 43328, SMC951552, SM-C-951552, SMC951552, SM-C-951552, SMC951552, SM-C-951552, SMC951552, SM-C-951552, SMC951552, SM-C-951552, 5915-01-212-0306, 01-212-0306, 5915012120306, 012120306
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 05, 1985 | 01-212-0306 | 05090 ( CAPACITOR-RESISTOR ) |
REFERENCE DRAWINGS & PICTURES

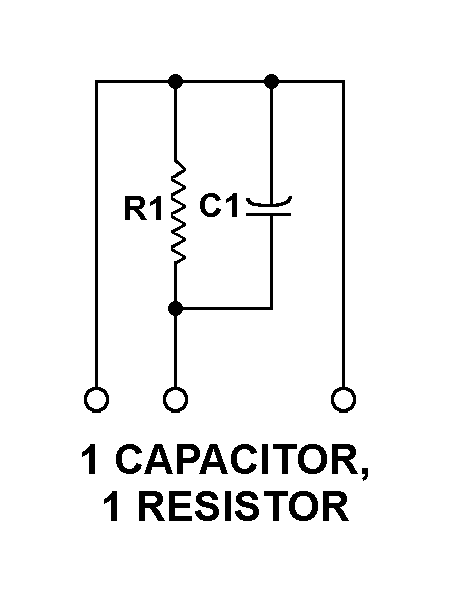

1 CAPACITOR, 1 RESISTOR
Cross Reference | NSN 5915-01-212-0306
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-951552 | 94117 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| RC951552 | 58364 | BYCAP, INC. |
| 43328 | 22558 | COAST/ADVANCED CHIP MAGNETICS, INC.DBA COAST/A C M |
| SM-C-951552 | 58017 | COBRA INDUSTRIES INC |
| SM-C-951552 | 03TF2 | TRIANGLE TOOL CO |
| SM-C-951552 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SM-C-951552 | 04YE2 | VALCORE MANUFACTURING LLC |
| SM-C-951552 | 20723 | VALCORE MANUFACTURING LLCDBA USE CAGE CODE 04YE2 FOR |
Technical Data | NSN 5915-01-212-0306
| Characteristic | Specifications |
|---|---|
| SCHEMATIC DIAGRAM DESIGNATOR | 1 1 CAPACITOR, 1 RESISTOR |
| CAPACITANCE VALUE PER FUNCTION | 560.0 MICROFARADS ALL CAPACITORS |
| CAPACITANCE TOLERANCE PER FUNCTION IN PERCENT | -10.0 TO +75.0 ALL CAPACITORS |
| DC VOLTAGE RATING PER FUNCTION IN VOLTS | 15.0 ALL CAPACITORS |
| ELECTRICAL RESISTANCE PER FUNCTION | 0.1 OHMS ALL RESISTORS |
| RESISTANCE TOLERANCE PER FUNCTION IN PERCENT | -1.0 TO +1.0 ALL RESISTORS |
| RESISTOR POWER DISSIPATION RATING PER FUNCTION IN WATTS | 3.000 ALL RESISTORS |
| ASSEMBLY FORM | MOLDED TOGETHER |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| MOUNTING METHOD | TERMINAL |
| OVERALL LENGTH | 2.810 INCHES MINIMUM AND 2.870 INCHES MAXIMUM |
| OVERALL WIDTH | 1.320 INCHES NOMINAL |
| OVERALL HEIGHT | 0.460 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | 5865-01-145-5197 COUNTERMEASURES |
