NSN 5915-01-202-6216
Part Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-01-202-6216 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Alternate Parts: 21247410200, 21-247410-200, 21287710200, 21-287710-200, KJJL7C10B5MPN, 9224871, 922487-1, 69224871, 6922487-1, 5915-01-202-6216, 01-202-6216, 5915012026216, 012026216
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 05, 1985 | 01-202-6216 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
REFERENCE DRAWINGS & PICTURES

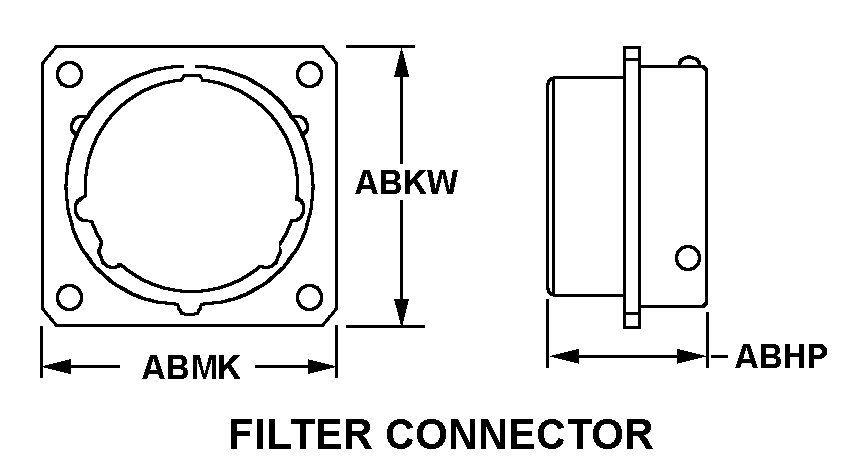

FILTER CONNECTOR
Cross Reference | NSN 5915-01-202-6216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21-247410-200 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 21-287710-200 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| KJJL7C10B5MPN | 71468 | ITT CORPORATIONDBA I T T CANNON |
| 922487-1 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
| 6922487-1 | 82577 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5915-01-202-6216
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FILTER CONNECTOR |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| PRINCIPAL CIRCUITRY TYPE PER FUNCTION | ZZ INDUCTANCE-CAPACITANCE |
