NSN 5910-00-436-1238
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-436-1238 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: CEM3A683SP1, CEM3A683SP-1, 3734051, 373405-1, 3734051, 373405-1, 3734051, 373405-1, 5910-00-436-1238, 00-436-1238, 5910004361238, 004361238
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 20, 1974 | 00-436-1238 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES
W/MTG HOLE(S)/SLOT(S), TERMINALS ON OPPOSITE SURFACES

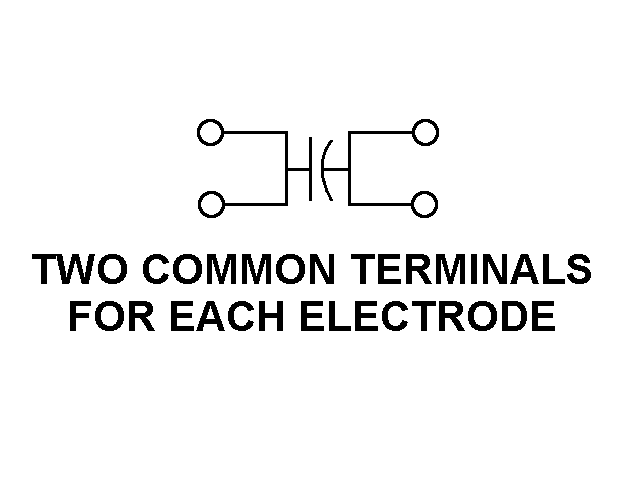

TWO COMMON TERMINALS FOR EACH ELECTRODE
Cross Reference | NSN 5910-00-436-1238
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CEM3A683SP-1 | 23280 | CUSTOM ELECTRONICS, INC. |
| 373405-1 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 373405-1 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| 373405-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5910-00-436-1238
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.100 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO +5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 1750.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -10.0 TO +10.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -54.0 DEG CELSIUS MINIMUM AND 120.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG HOLE(S)/SLOT(S), TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 3.150 INCHES MAXIMUM |
| BODY WIDTH | 1.500 INCHES MAXIMUM |
| BODY HEIGHT | 0.260 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | TWO COMMON TERMINALS FOR EACH ELECTRODE |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
| TERMINAL LENGTH | 0.265 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH | 0.500 INCHES NOMINAL |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.168 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.100 INCHES NOMINAL |
| INSULATION RESISTANCE AT REFERENCE TEMP | 60000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.400 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
