NSN 5910-00-432-6715
Part Details | CAPACITOR RETAINER
5910-00-432-6715 An item primarily designed to position and/or restrain the movement of one or more capacitors in their normal mounting position. Excludes CLIP, ELECTRICAL and CLAMP, LOOP.
Alternate Parts: 0N089487, 5910-00-432-6715, 00-432-6715, 5910004326715, 004326715
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 12, 1971 | 00-432-6715 | 19799 ( RETAINER, CAPACITOR ) |
REFERENCE DRAWINGS & PICTURES

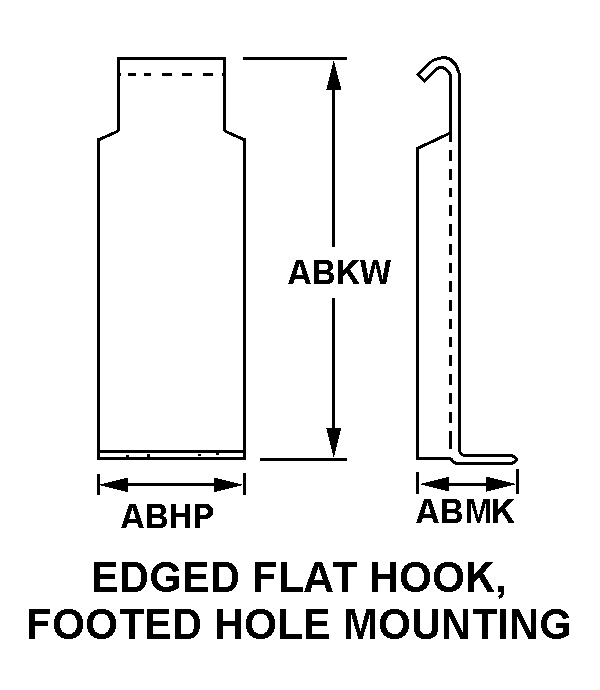

EDGED FLAT HOOK, FOOTED HOLE MOUNTING
Cross Reference | NSN 5910-00-432-6715
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0N089487 | 98230 | NATIONAL SECURITY AGENCY |
Technical Data | NSN 5910-00-432-6715
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-766 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-F-14072 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | EDGED FLAT HOOK, FOOTED HOLE MOUNTING |
| OVERALL LENGTH | 1.070 INCHES NOMINAL |
| OVERALL HEIGHT | 0.720 INCHES NOMINAL |
| OVERALL WIDTH | 0.556 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | SLOT |
