NSN 5910-00-421-5590
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-421-5590 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 51154, 51154, 5910-00-421-5590, 00-421-5590, 5910004215590, 004215590
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 09, 1970 | 00-421-5590 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |

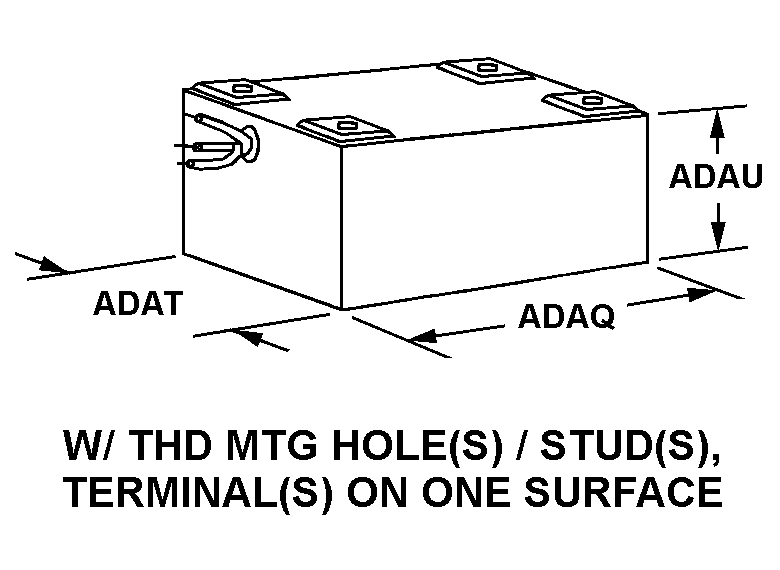

REFERENCE DRAWINGS & PICTURES
W/THD MTG HOLE(S)/STUD(S) TERMINALS ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-421-5590
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 51154 | 98675 | ESPEY MFG. & ELECTRONICS CORP. |
| 51154 | 20950 | ESPEY MFG. & ELECTRONICS CORP. |
Technical Data | NSN 5910-00-421-5590
| Characteristic | Specifications |
|---|---|
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S) TERMINALS ON ONE SURFACE |
| BODY LENGTH | 2.838 INCHES NOMINAL |
| BODY WIDTH | 2.680 INCHES NOMINAL |
| BODY HEIGHT | 2.310 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL DIAMETER | 0.051 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH | 1.000 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED MOUNTING HOLES |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
