NSN 5910-00-419-5375
Part Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-419-5375 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: CSK4296, SK4296, 8151420501, 8151420-501, 8151420, CSK4296, 95250019002, 9525-001-9002, 5910-00-419-5375, 00-419-5375, 5910004195375, 004195375
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 30, 1970 | 00-419-5375 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

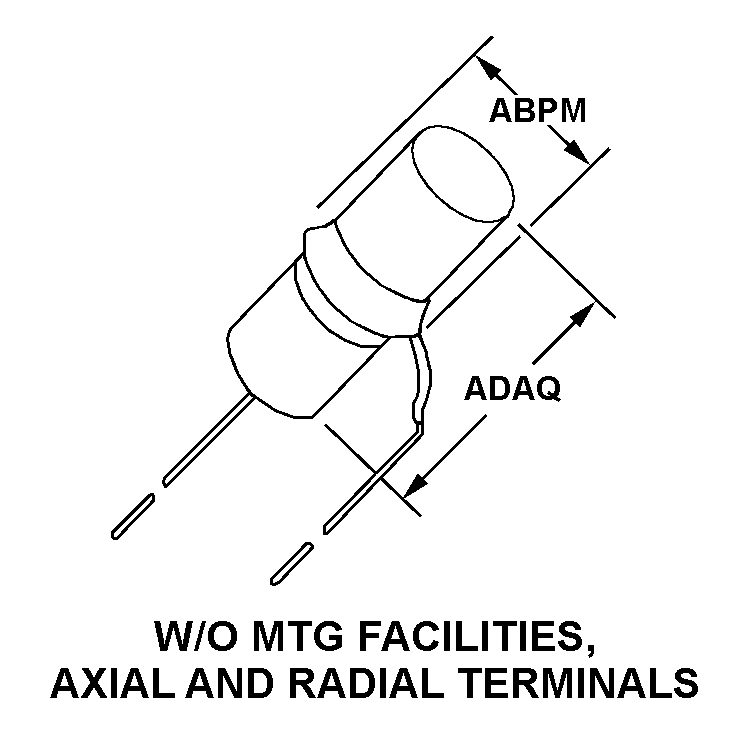

W/O MTG FACILITIES, AXIAL AND RADIAL TERMINALS
Cross Reference | NSN 5910-00-419-5375
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CSK4296 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| SK4296 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 8151420-501 | 02734 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 8151420 | 49671 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| CSK4296 | 12294 | MURATA ERIE NORTH AMERICA INC DIVOFMURATA ERIE |
| 9525-001-9002 | 12294 | MURATA ERIE NORTH AMERICA INC DIVOFMURATA ERIE |
Technical Data | NSN 5910-00-419-5375
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| BODY STYLE | W/O MTG FACILITIES, AXIAL AND RADIAL TERMINALS |
| BODY DIAMETER | 0.250 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 0.500 INCHES NOMINAL |
