NSN 5910-00-415-6623
Part Details | PAPER-PLASTIC DIELECTRIC METALLIZED FIXED CAPACITOR
5910-00-415-6623 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Alternate Parts: 25482144, 2548214-4, 5910-00-415-6623, 00-415-6623, 5910004156623, 004156623
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 13, 1970 | 00-415-6623 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

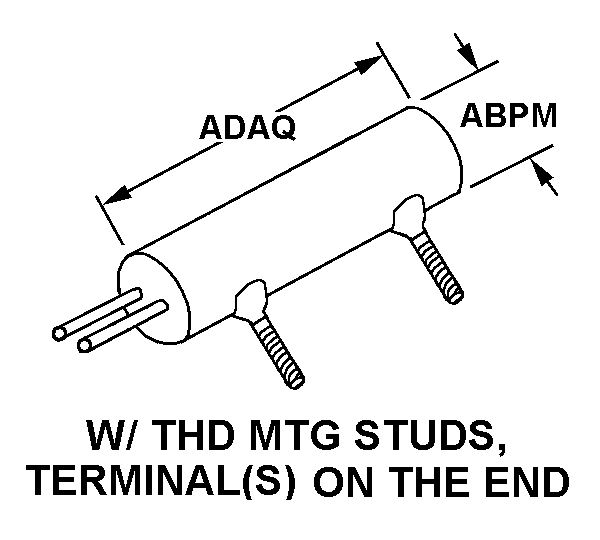

W/THD MTG STUDS, TERMINAL(S) ON THE END
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-415-6623
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2548214-4 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5910-00-415-6623
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 0.220 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 400.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG STUDS, TERMINAL(S) ON THE END |
| BODY DIAMETER | 0.425 INCHES MAXIMUM |
| BODY LENGTH | 1.310 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.620 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| POWER FACTOR AT REFERENCE TEMP IN PERCENT | 1.000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
