NSN 5910-00-415-2034
Part Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-00-415-2034 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 33239142, 332391-42, 33239142, 332391-42, 5910-00-415-2034, 00-415-2034, 5910004152034, 004152034
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 13, 1970 | 00-415-2034 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

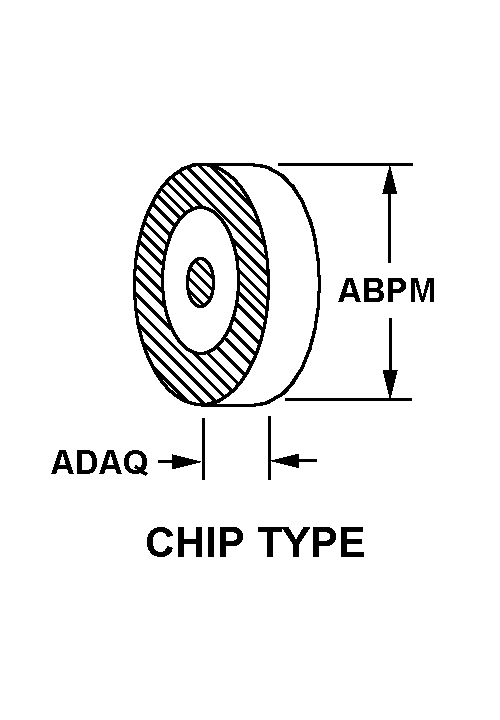

CHIP TYPE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-415-2034
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 332391-42 | 04222 | AVX CORPORATIONDBA OLEAN ADVANCED PRODUCTS |
| 332391-42 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
Technical Data | NSN 5910-00-415-2034
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 560.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 250.0 DC SINGLE SECTION |
| VOLTAGE TEMP LIMITS PER SECTION IN PERCENT CAPACITANCE CHANGE | -30.0 TO +10.0 WITH RATED VOLTAGE APPLIED SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | CHIP TYPE |
| BODY DIAMETER | 0.250 INCHES MAXIMUM |
| BODY LENGTH | 0.025 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 BONDING PAD |
| CASE MATERIAL | GLASS |
| INSULATION RESISTANCE AT REFERENCE TEMP | 100000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 2.5000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 1000.0 MEGOHMS |
