NSN 5910-00-414-7881
Part Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-414-7881 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 3615751, 361575-1, M0101, M010-1, 202D820, 202D820, RW300030B4X2G, RW3000-30B4X2G, 5910-00-414-7881, 00-414-7881, 5910004147881, 004147881
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 09, 1970 | 00-414-7881 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
REFERENCE DRAWINGS & PICTURES

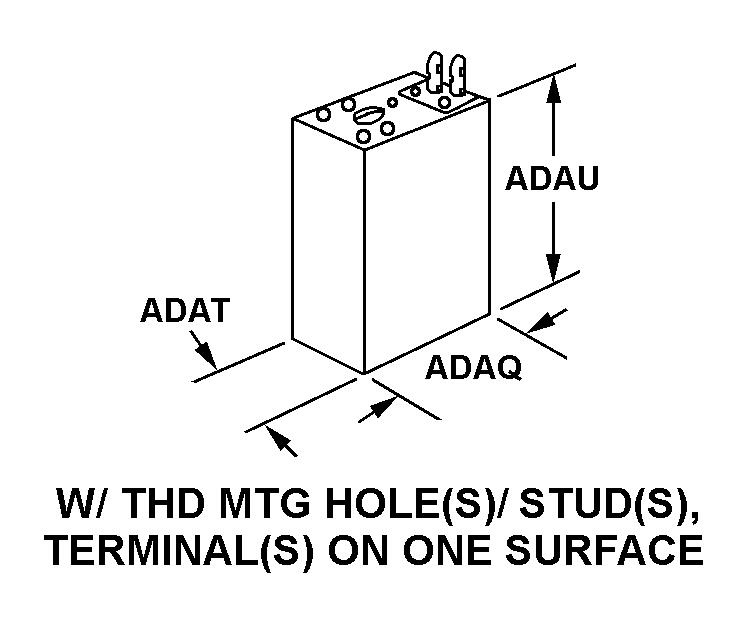

W/THD MTG HOLE(S)/STUD(S), TERMINAL(S) ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-414-7881
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 361575-1 | 00752 | EDO LLCDIV ANTENNA PRODUCTS |
| M010-1 | 1RUZ5 | PALM BEACH COMPONENTS INC. |
| 202D820 | 56289 | SPRAGUE ELECTRIC COWORLD HQS |
| 202D820 | 26769 | SPRAGUE PALM BEACH INCA VISHAY/SPRAGUE CO |
| RW3000-30B4X2G | 05079 | VISHAY SPRAGUE INC. |
Technical Data | NSN 5910-00-414-7881
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 3000.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -20.00 TO +20.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 30.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 1.593 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY HEIGHT | 3.125 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED MOUNTING HOLES |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 0.500 INCHES NOMINAL |
| CAPACITIVE ELECTRODE MATERIAL | TANTALUM |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 12.0000 |
| EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS | 0.15 |
| DC LEAKAGE AT REFERENCE TEMP | 22.500 MICROAMPERES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | MTG HOLES LOCATED OPPOSITE TERMINAL END |
| TERMINAL SURFACE TREATMENT | SOLDER |
| ANODE TYPE | ETCHED FOIL |
| IMPEDANCE AT MINIMUM OPERATING TEMP IN OHMS | 2.5 |
| DC LEAKAGE AT MAXIMUM OPERATING TEMP | 138.0 MILLIAMPERES |
