NSN 5910-00-408-8859
Part Details | PLASTIC DIELECTRIC FIXED CAPACITOR
5910-00-408-8859 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.
Alternate Parts: FC4013, FC401-3, FD37811, FD3781-1, 88146000111, 8814600011-1, 88146000011, 8814600001-1, 5910-00-408-8859, 00-408-8859, 5910004088859, 004088859
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 10, 1970 | 00-408-8859 | 00006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

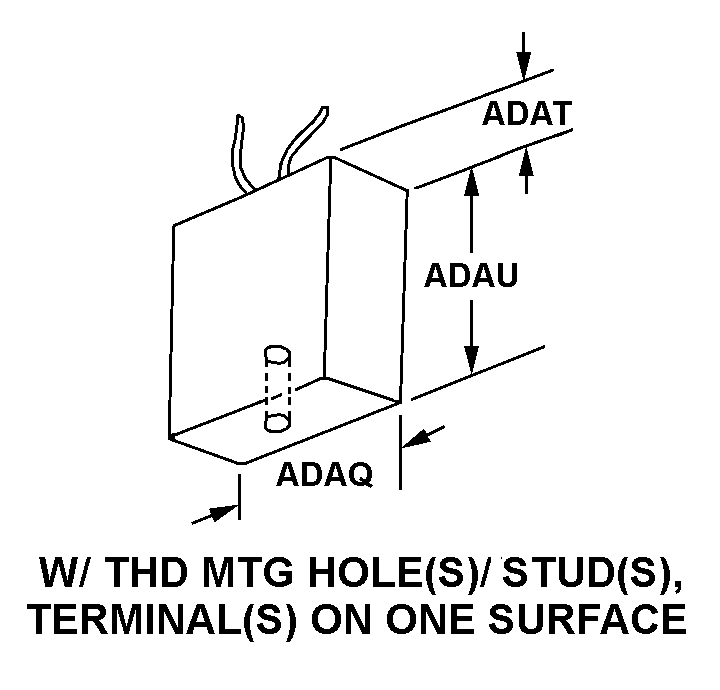

W/THD MTG HOLE(S)/STUD(S), TERMINAL(S) ON ONE SURFACE
NO COMMON OR GROUNDED ELECTRODE(S)
Cross Reference | NSN 5910-00-408-8859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FC401-3 | 14158 | AVX FILTERS |
| FD3781-1 | 27556 | IMB ELECTRONIC PRODUCTS INC |
| 8814600011-1 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
| 8814600001-1 | 57057 | NAVCOM DEFENSE ELECTRONICS, INC. |
Technical Data | NSN 5910-00-408-8859
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| CAPACITANCE VALUE PER SECTION | 430.000 NANOFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -5.00 TO +5.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 200.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/THD MTG HOLE(S)/STUD(S), TERMINAL(S) ON ONE SURFACE |
| BODY LENGTH | 2.312 INCHES NOMINAL |
| BODY WIDTH | 1.875 INCHES NOMINAL |
| BODY HEIGHT | 1.265 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 3 INSULATED WIRE LEAD |
| CASE MATERIAL | PLASTIC |
| MOUNTING FACILITY TYPE AND QUANTITY | 3 THREADED MOUNTING STUDS |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| INSULATION RESISTANCE AT REFERENCE TEMP | 25000.0 MEGOHMS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 0.4000 |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SOLDER |
