NSN 5910-00-408-4018
Part Details | MICA DIELECTRIC FIXED CAPACITOR
5910-00-408-4018 A capacitor, whose capacitance value cannot be adjusted or varied, having natural sheet mica or reconstituted flaked mica formed into sheets as the dielectric material. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 25793415, 257934-15, 5910-00-408-4018, 00-408-4018, 5910004084018, 004084018
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 17, 1970 | 00-408-4018 | 00005 ( CAPACITOR, FIXED, MICA DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES

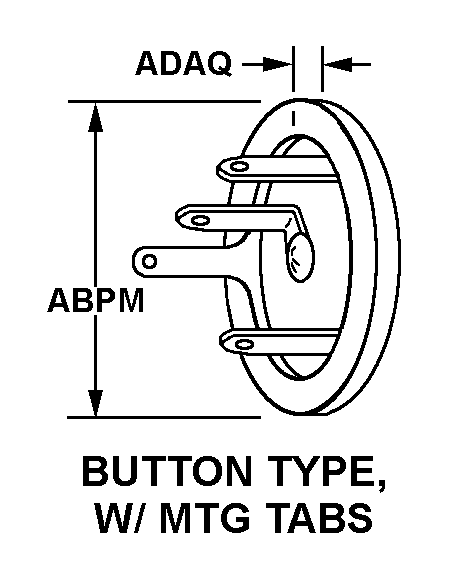

BUTTON TYPE, W/MTG TABS
ELECTRODE(S) GROUNDED TO CASE
Cross Reference | NSN 5910-00-408-4018
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 257934-15 | 37695 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5910-00-408-4018
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO +10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC SINGLE SECTION |
| TEMP COEFFICIENT OF CAPACITANCE RANGE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO +100.0 SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | BUTTON TYPE, W/MTG TABS |
| BODY DIAMETER | 0.450 INCHES NOMINAL |
| BODY LENGTH | 0.085 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 TAB, SOLDER LUG |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL SURFACE TREATMENT | SILVER |
