NSN 5910-00-400-1389
Part Details | CAPACITOR SHIELD
5910-00-400-1389 An item specifically designed to be placed around a capacitor for the purpose of shielding against electrical or mechanical interference. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Alternate Parts: 200025800, 200-0258-00, 5910-00-400-1389, 00-400-1389, 5910004001389, 004001389
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | FEB 26, 1969 | 00-400-1389 | 00872 ( SHIELD, CAPACITOR ) |

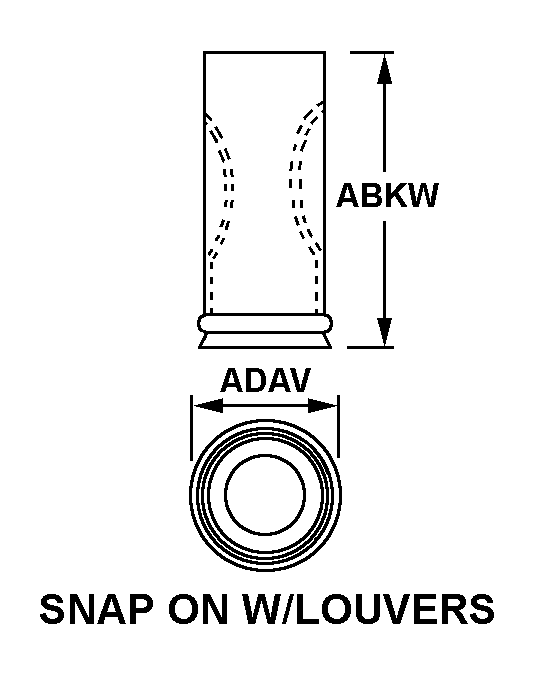

REFERENCE DRAWINGS & PICTURES
SNAP ON W/LOUVERS
Cross Reference | NSN 5910-00-400-1389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 200-0258-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5910-00-400-1389
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYPROPYLENE |
| STYLE DESIGNATOR | SNAP ON W/LOUVERS |
| OVERALL HEIGHT | 3.144 INCHES NOMINAL |
| OVERALL DIAMETER | 1.514 INCHES NOMINAL |
| ACCOMMODATED ITEM SECURING DEVICE TYPE | FRICTION FASTENER |
