NSN 5910-00-081-0633

Part Details | PLASTIC DIELECTRIC FIXED CAPACITOR

5910-00-081-0633 A capacitor whose capacitance value cannot be adjusted or varied, having a plastic, plastic film, plasticized (plastic impregnated) paper, or any combination of plastic and paper or plastic and paper films as the dielectric material. The plastic may be one or more types of synthetic compounds such as polyesters, polyfluorides, polycabonates, and the like. It may be a single unit, or consist of two or more fixed units which cannot be separated. For items whose electrodes consist of a metallic film deposited (metallized) on the dielectric material, see CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC.

Alternate Parts: 1564, 5910-00-081-0633, 00-081-0633, 5910000810633, 000810633

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
59JAN 01, 196300-081-063300006 ( CAPACITOR, FIXED, PLASTIC DIELECTRIC )
REFERENCE DRAWINGS & PICTURES

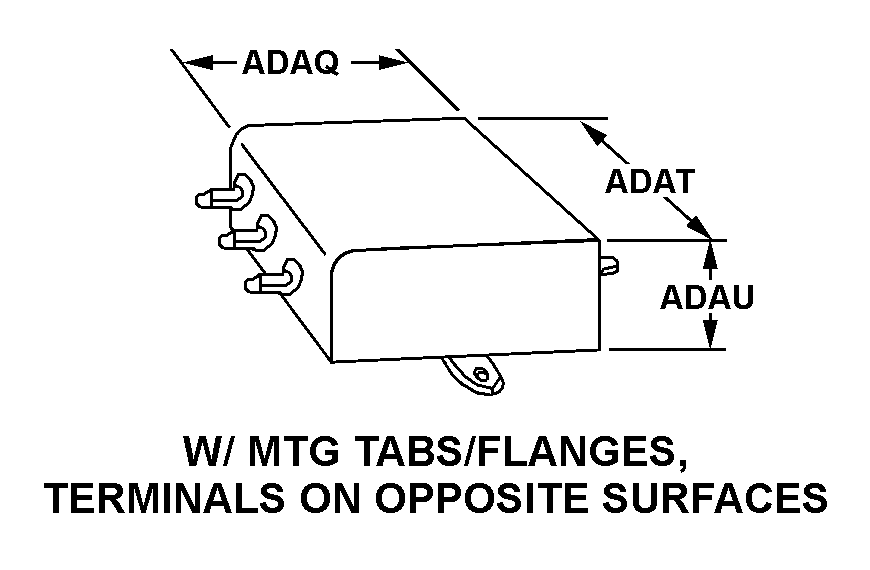

W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES

NO COMMON OR GROUNDED ELECTRODE(S)

Cross Reference | NSN 5910-00-081-0633
Part Number Cage Code Manufacturer
156499217BELL INDUSTRIES INCELECTRONIC DISTRIBUTOR DIV
Technical Data | NSN 5910-00-081-0633
Characteristic Specifications
CAPACITANCE VALUE PER SECTION10.000 MICROFARADS SINGLE SECTION
TOLERANCE RANGE PER SECTION-1.00 TO +1.00 PERCENT SINGLE SECTION
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION100.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP-65.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM
BODY STYLE W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES
BODY LENGTH2.000 INCHES NOMINAL
BODY WIDTH2.000 INCHES NOMINAL
BODY HEIGHT1.000 INCHES NOMINAL
SCHEMATIC DIAGRAM DESIGNATOR NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL TYPE AND QUANTITY2 TAB, SOLDER LUG
CASE MATERIAL METAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH2.375 INCHES NOMINAL
RELIABILITY INDICATOR NOT ESTABLISHED
FEATURES PROVIDED HERMETICALLY SEALED CASE
