NSN 5905-00-175-8651
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-175-8651 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 3881.5MEGPORM30PCT, 388-1.5MEGPORM30PCT, UPE70155, UPE70-155, UPE70155, UPE70-155, 21002108, 2100-2108, 21002108, 2100-2108, 5905-00-175-8651, 00-175-8651, 5905001758651, 001758651
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 10, 1971 | 00-175-8651 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

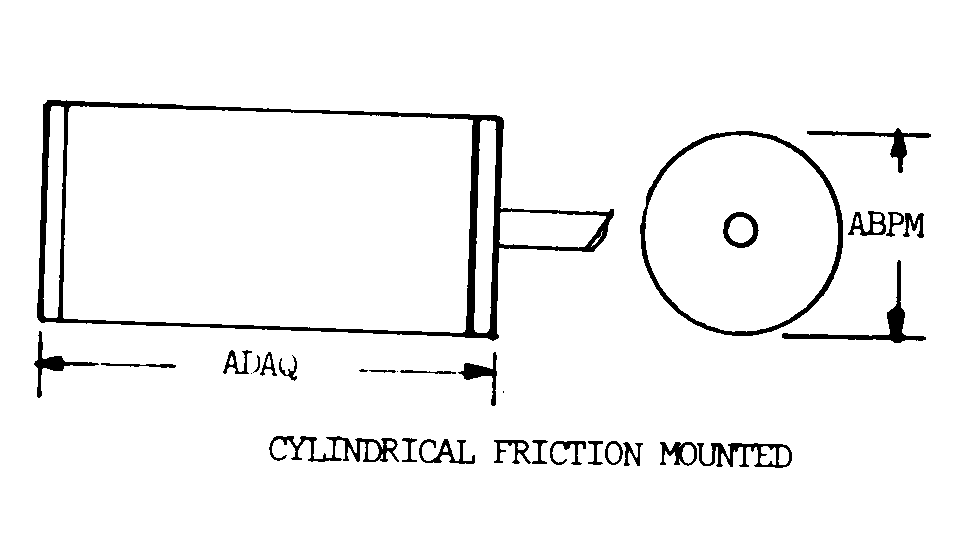

CYLINDRICAL FRICTION MOUNTED
ROUND
Cross Reference | NSN 5905-00-175-8651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 388-1.5MEGPORM30PCT | 12697 | CLAROSTAT SENSORS AND CONTROLS |
| UPE70-155 | 71450 | CTS CORP |
| UPE70-155 | 58756 | CTS CORP ELECTROMECHANICAL DIV |
| 2100-2108 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 2100-2108 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5905-00-175-8651
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.5 MEGOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -30.0 TO +30.0 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 4.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 0.75 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.1 FREE AIR SINGLE SECTION |
| BODY STYLE | CYLINDRICAL FRICTION MOUNTED |
| BODY DIAMETER | 0.783 INCHES NOMINAL |
| BODY LENGTH | 0.328 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND |
| SHAFT DIAMETER | 0.156 INCHES NOMINAL |
| SHAFT LENGTH | 0.438 INCHES NOMINAL |
| MOUNTING METHOD | TAB |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | FORRESTAL CLASS CV,AUSTIN SHIP CLASS LPD-4 AMPHIBIOUS TRANSPORT DOCKS,WHIDBEY ISLAND CLASS LSD,NIMITZ CLASS CVN,EMORY S.LAND CLASS AS,SPRUANCE CLASS DD(963),TARAWA CLASS LHA,SUPPLY CLASS AOE,OLIVER PERRY CLASS FFG,VIRGINIA CLASS CGN(41) |
