NSN 5905-00-174-8211
Part Details | WIRE WOUND FIXED RESISTOR
5905-00-174-8211 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Alternate Parts: 192408412VM91, 1924084-1-2VM9-1, 192408412VM91, 1924084-1-2VM9-1, 5905-00-174-8211, 00-174-8211, 5905001748211, 001748211
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-174-8211 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |

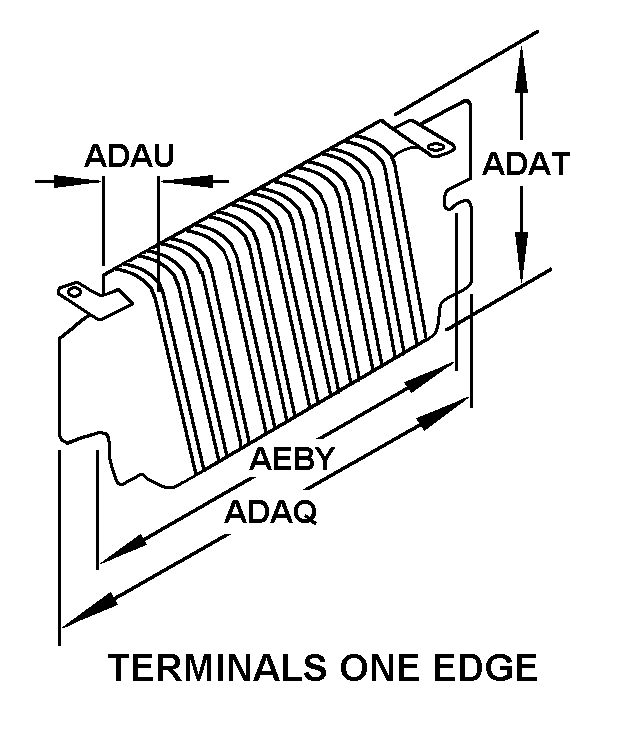

REFERENCE DRAWINGS & PICTURES
TERMINALS ONE EDGE
Cross Reference | NSN 5905-00-174-8211
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1924084-1-2VM9-1 | 24446 | GENERAL ELECTRIC COMPANY |
| 1924084-1-2VM9-1 | 71669 | GENERAL ELECTRIC COSWITCHGEAR AND CONTROL DIVISION |
Technical Data | NSN 5905-00-174-8211
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 1.200 OHMS |
| FIXED TAP QUANTITY | 9 |
| FIXED TAP TERMINAL TYPE | TAB W/SCREW |
| POWER DISSIPATION RATING IN WATTS | 850.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 350.0 |
| INCLOSURE METHOD | UNINCLOSED |
| STYLE DESIGNATOR | TERMINALS ONE EDGE |
| BODY LENGTH | 15.750 INCHES NOMINAL |
| BODY WIDTH | 4.688 INCHES NOMINAL |
| BODY HEIGHT | 1.250 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 14.625 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.562 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| REACTANCE CHARACTERISTIC | INDUCTIVE |
