NSN 5905-00-161-3112
Part Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-161-3112 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Alternate Parts: 1500719, 1500-719, 1708145, 170-8145, 26649171, 2664917-1, 2664917, 26649171, 2664917-1, 1708145, 170-8145, 5905-00-161-3112, 00-161-3112, 5905001613112, 001613112
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 03, 1971 | 00-161-3112 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL SERVO MOUNTED

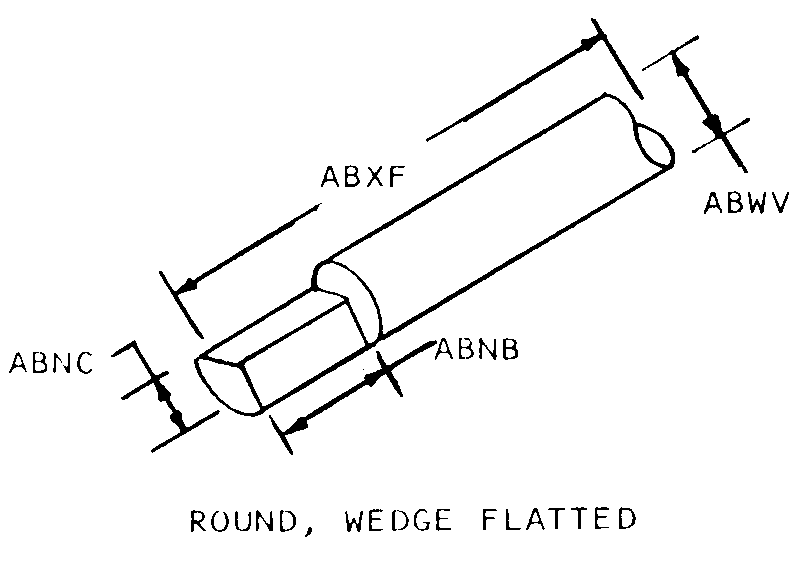

ROUND, WEDGE FLATTED
Cross Reference | NSN 5905-00-161-3112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1500-719 | 11534 | BEI SENSORS & SYSTEMS COMPANY, INC.DBA BEI DUNCAN |
| 170-8145 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 2664917-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2664917 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2664917-1 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 170-8145 | 02111 | VISHAY THIN FILM, LLCDBA VISHAY SPECTORAL ELECTRONICS |
Technical Data | NSN 5905-00-161-3112
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 5.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -3.0 TO +3.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO +0.50 SINGLE SECTION |
| SHAFT RUNOUT | 0.001 INCHES |
| LATERAL RUNOUT | 0.002 INCHES |
| PILOT DIAMETER RUNOUT | 0.0015 INCHES |
| SHAFT RADIAL PLAY | 0.002 INCHES |
| SHAFT END PLAY | 0.004 INCHES |
| MAXIMUM STOP TORQUE | 480.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 0.60 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 0.40 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -850.0 TO +850.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 3.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 60.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 125.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 1.3125 INCHES NOMINAL |
| PILOT LENGTH | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 1.285 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0730 INCHES NOMINAL |
| BODY DIAMETER | 1.437 INCHES NOMINAL |
| BODY LENGTH | 0.970 INCHES NOMINAL |
| MOUNTING LIP DIAMETER | 1.4370 INCHES NOMINAL |
| MOUNTING LIP DEPTH | 0.0620 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, WEDGE FLATTED |
| FIRST FLAT LENGTH | 0.350 INCHES NOMINAL |
| FLAT HEIGHT | 0.230 INCHES NOMINAL |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 1.090 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 330.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 354.0 NOMINAL |
| MOUNTING METHOD | CLAMP RING |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 10001-2664917 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| OVERALL LENGTH | 2.060 INCHES NOMINAL |
| OVERALL DIAMETER | 1.625 INCHES NOMINAL |
| FRAGILITY FACTOR | MODERATELY RUGGED |
