NSN 5905-00-153-4092
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-153-4092 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 928C375P1, 43297, 5905-00-153-4092, 00-153-4092, 5905001534092, 001534092
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 19, 1972 | 00-153-4092 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

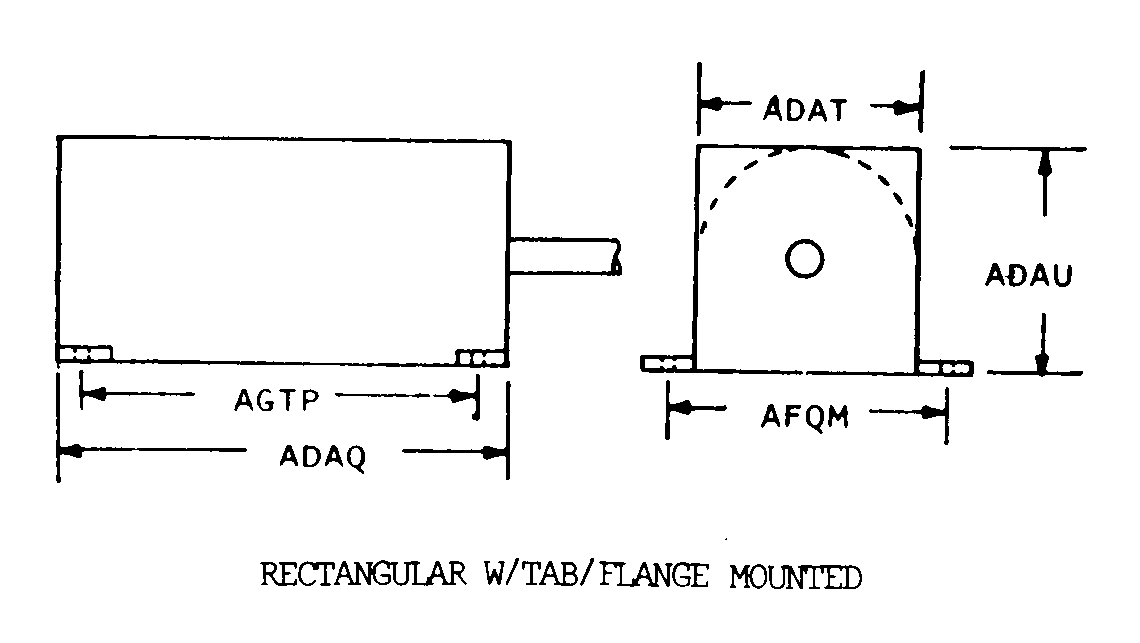

RECTANGULAR W/TAB/FLANGE MOUNTED
ROUND
Cross Reference | NSN 5905-00-153-4092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 928C375P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
| 43297 | 10112 | GENERAL DYNAMICS GLOBAL IMAGINGTECHNOLOGIES, INC. |
Technical Data | NSN 5905-00-153-4092
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 20.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 SINGLE SECTION |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 85.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR W/TAB/FLANGE MOUNTED |
| BODY LENGTH | 4.125 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| BODY HEIGHT | 1.000 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.000 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 4.000 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 1.000 INCHES NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 360.0 NOMINAL |
| LONGITUDINAL ACTUATOR TRAVEL | 3.0 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| SCREW THREAD DIAMETER | 0.100 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 0.200 |
| FEATURES PROVIDED | NONMETALLIC SHAFT |
| TERMINAL TYPE AND QUANTITY | 4 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
