NSN 5905-00-138-3330
Part Details | THERMAL RESISTOR
5905-00-138-3330 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: GA52P2, RS52.2K, RS-5-2.2K, RS0052K200FB12, 5905-00-138-3330, 00-138-3330, 5905001383330, 001383330
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | AUG 09, 1971 | 00-138-3330 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

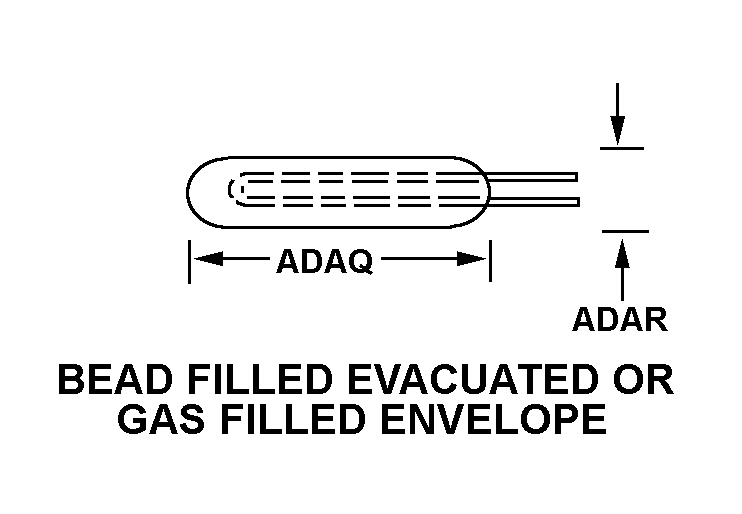

BEAD TYPE EVACUATED OR GAS FILLED ENVELOPE
Cross Reference | NSN 5905-00-138-3330
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GA52P2 | 15801 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| RS-5-2.2K | 91637 | VISHAY DALE ELECTRONICS, LLCDBA VISHAY INTERTECHNOLOGY |
| RS0052K200FB12 | 91637 | VISHAY DALE ELECTRONICS, LLCDBA VISHAY INTERTECHNOLOGY |
Technical Data | NSN 5905-00-138-3330
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 200.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M20.0/P20.0 |
| THERMAL TIME CONSTANT IN SECONDS | 25.0 |
| STYLE DESIGNATOR | BEAD TYPE EVACUATED OR GAS FILLED ENVELOPE |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.100 INCHES NOMINAL |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 2.000 INCHES NOMINAL |
| TERMINAL DIAMETER | 0.012 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
