NSN 5905-00-138-1177
Part Details | THERMAL RESISTOR
5905-00-138-1177 A thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature. Item may be mounted in a probe or housing. For ballast tube type resistors, see RESISTOR (1), CURRENT REGULATING. Excludes TRANSMITTER (1), TEMPERATURE, ELECTRICAL RESISTANCE and TEMPERATURE ELEMENT, RESISTANCE METEOROLOGICAL.
Alternate Parts: 33D12, 33D12, 5905-00-138-1177, 00-138-1177, 5905001381177, 001381177
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 23, 1971 | 00-138-1177 | 00309 ( RESISTOR, THERMAL ) |
REFERENCE DRAWINGS & PICTURES

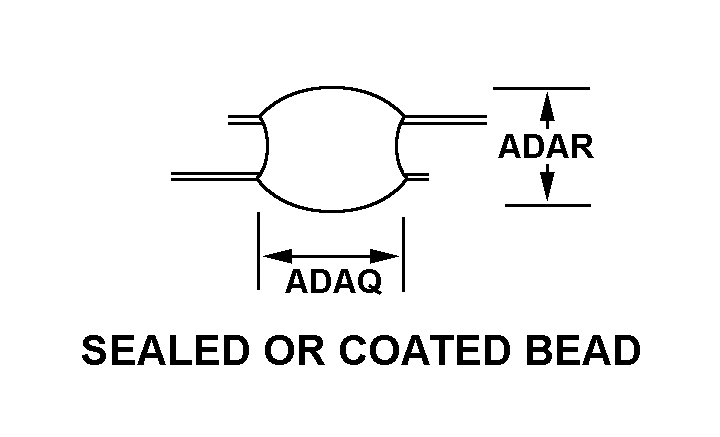

SEALED OR COATED BEAD
Cross Reference | NSN 5905-00-138-1177
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 33D12 | 83186 | MEAS US LLCDIV TEMPERATURE PRODUCTS GROUP |
| 33D12 | 1L9U5 | MEASUREMENT SPECIALTIES, INC. |
Technical Data | NSN 5905-00-138-1177
| Characteristic | Specifications |
|---|---|
| ZERO POWER RESISTANCE | 3.000 KILOHMS |
| ZERO POWER RESISTANCE TOLERANCE IN PERCENT AT REFERENCE TEMP | M10.0/P10.0 |
| STYLE DESIGNATOR | SEALED OR COATED BEAD |
| BODY LENGTH | 0.164 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.100 INCHES NOMINAL |
| INCLOSURE TYPE | ENCAPSULATED |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| TERMINAL LENGTH | 1.000 INCHES MINIMUM |
| TERMINAL DIAMETER | 0.013 INCHES NOMINAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
