NSN 5905-00-137-5311
Part Details | PRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-137-5311 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity) of the output is equal to or less than plus or munus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE, For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION.
Alternate Parts: 7246R100L.25, 7246R100L025, 7246R100L0-25, 3023529013101, 3023529-013-101, 5905-00-137-5311, 00-137-5311, 5905001375311, 001375311
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 30, 1971 | 00-137-5311 | 37408 ( RESISTOR, VARIABLE, WIRE WOUND, PRECISION ) |
REFERENCE DRAWINGS & PICTURES

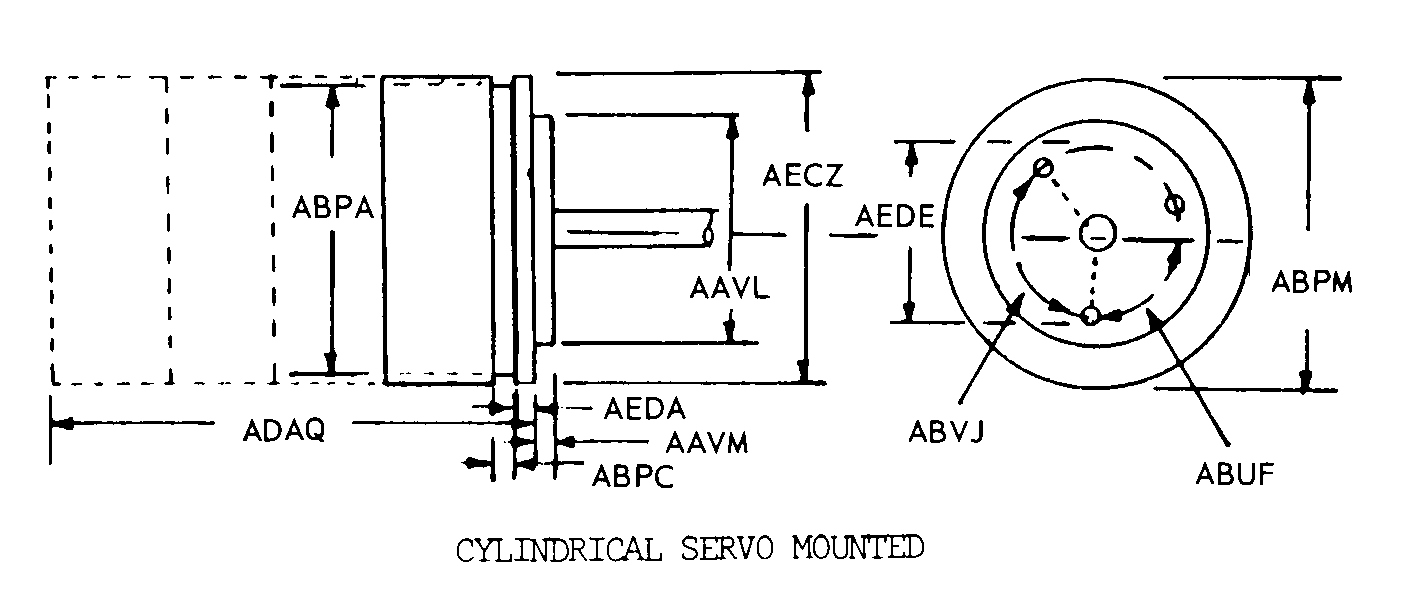

CYLINDRICAL SERVO MOUNTED
ROUND
Cross Reference | NSN 5905-00-137-5311
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7246R100L.25 | 73138 | BI TECHNOLOGIES CORPORATIONDIV BI TECHNOLOGIES CORP. |
| 7246R100L0-25 | 73138 | BI TECHNOLOGIES CORPORATIONDIV BI TECHNOLOGIES CORP. |
| 3023529-013-101 | 99696 | LOCKHEED MARTIN CORPORATIONDIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
Technical Data | NSN 5905-00-137-5311
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 100.000 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION ABSOLUTE LINEARITY |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.25 TO +0.25 SINGLE SECTION |
| MAXIMUM STOP TORQUE | 60.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 2.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 2.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE WIRE PER SECTION IN PPM PER DEG CELSIUS | -0.0 TO +800.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 25.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL SERVO MOUNTED |
| BODY LENGTH | 1.468 INCHES NOMINAL |
| MOUNTING LIP DIAMETER | 0.87500 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.500 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 3600.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| TERMINAL LOCATION | LONGITUDINALLY POSITIONED ON THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 2.280 INCHES NOMINAL |
