NSN 5905-00-137-4600
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-137-4600 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 21002580, 2100-2580, 21002580, 2100-2580, 5905-00-137-4600, 00-137-4600, 5905001374600, 001374600
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 16, 1971 | 00-137-4600 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

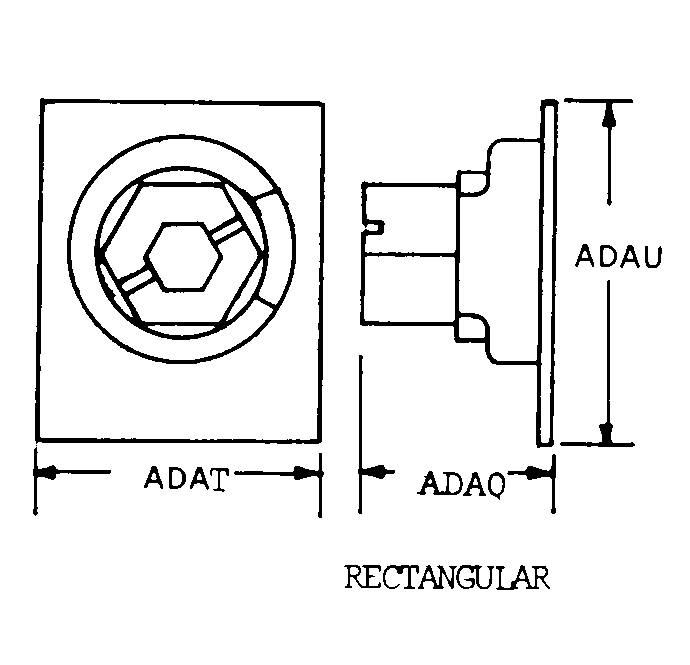

RECTANGULAR
Cross Reference | NSN 5905-00-137-4600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2100-2580 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 2100-2580 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5905-00-137-4600
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 2 |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -30.0 TO +30.0 ALL SECTIONS |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 ALL SECTIONS |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 105.0 ALL SECTIONS |
| BODY STYLE | RECTANGULAR |
| BODY LENGTH | 0.350 INCHES NOMINAL |
| BODY WIDTH | 0.790 INCHES NOMINAL |
| BODY HEIGHT | 1.218 INCHES NOMINAL |
| ACTUATOR TYPE | INTEGRAL KNOB |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 290.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 290.0 NOMINAL |
| MOUNTING METHOD | BRACKET |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
