NSN 5905-00-133-5289
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-133-5289 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 1062120093, 106-212-0093, 1062120093, 106-212-0093, 1062120093, 106-212-0093, C594400090250918, C5944-000-902-5-0918, 5905-00-133-5289, 00-133-5289, 5905001335289, 001335289
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 26, 1968 | 00-133-5289 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

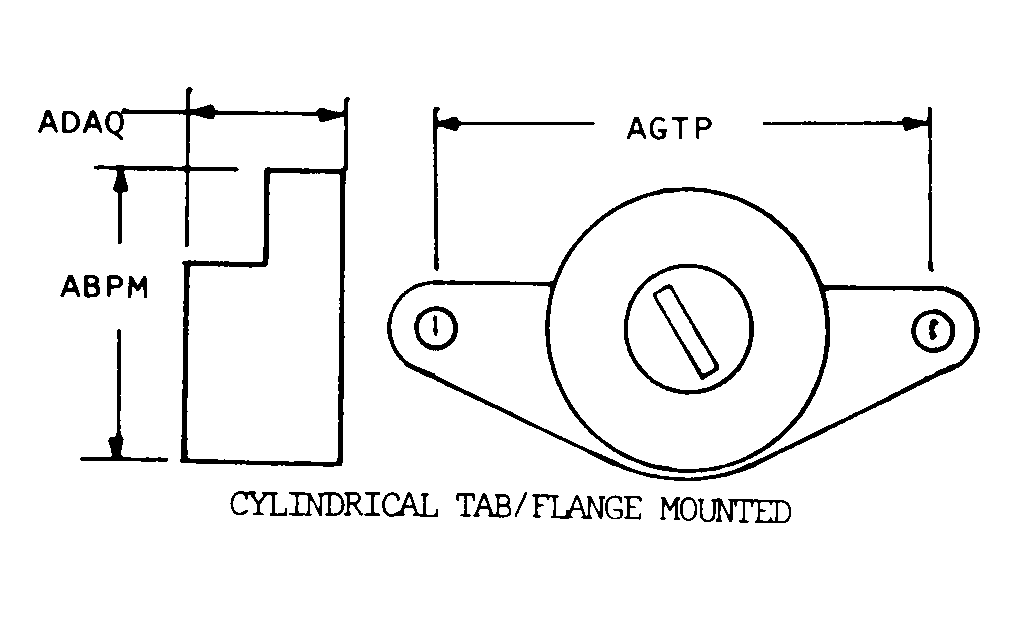

CYLINDRICAL TAB/FLANGE MOUNTED
Cross Reference | NSN 5905-00-133-5289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 106-212-0093 | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
| 106-212-0093 | 1K426 | MOOG INC.DBA MOOG COMPONENTS GROUP |
| 106-212-0093 | 99932 | MOOG INC.DBA MOOG COMPONENTS GROUP |
| C5944-000-902-5-0918 | 84048 | VERNITRON CORPVRN INTERNATIONAL DIV |
Technical Data | NSN 5905-00-133-5289
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 9.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE WIRE PER SECTION IN PPM PER DEG CELSIUS | -20.0 TO +20.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 100.0 SINGLE SECTION |
| FIXED TAP QUANTITY PER SECTION | 1 SINGLE SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN DEG OF EFFECTIVE ELECTRICAL ROTATION | 180.0 SINGLE SECTION |
| TAP LOCATION TOLERANCE PER SECTION | -3.0 TO +3.0 DEG ANGULAR ROTATION SINGLE SECTION |
| BODY STYLE | CYLINDRICAL TAB/FLANGE MOUNTED |
| BODY DIAMETER | 0.740 INCHES MINIMUM AND 0.760 INCHES MAXIMUM |
| BODY LENGTH | 0.629 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.960 INCHES NOMINAL |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 270.0 NOMINAL |
| MOUNTING METHOD | FLANGE |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LOOP |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FRAGILITY FACTOR | MODERATELY DELICATE |
