NSN 5905-00-131-6468
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-131-6468 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: ERT13, JPH2101, JPH/2-101, JPH2101, JPH/2-101, 50M175, 50-M175, 5905-00-131-6468, 00-131-6468, 5905001316468, 001316468
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | DEC 11, 1968 | 00-131-6468 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

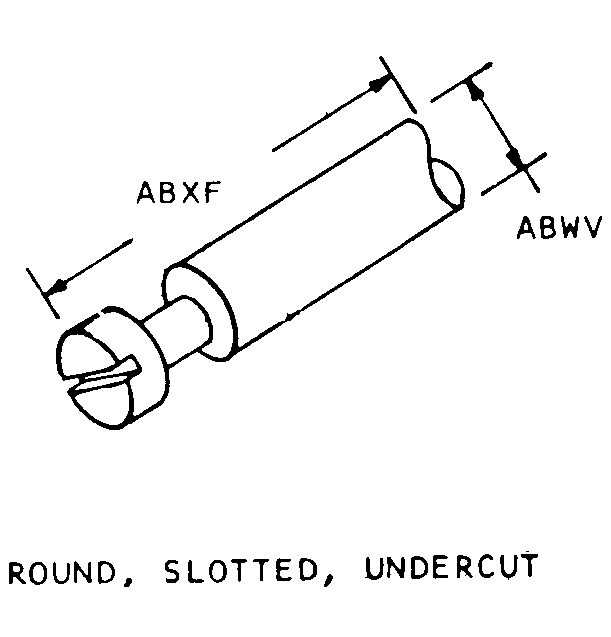

ROUND, SLOTTED, UNDERCUT
Cross Reference | NSN 5905-00-131-6468
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ERT13 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC.DBA COBHAM MISSION SYSTEM |
| JPH/2-101 | 06880 | DATA INSTRUMENTS INC |
| JPH/2-101 | 94603 | HONEYWELL SENSING & CONTROL |
| 50-M175 | 03942 | MAUREY INSTRUMENT CORP |
Technical Data | NSN 5905-00-131-6468
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -5.00 TO +5.00 SINGLE SECTION |
| SHAFT BEARING TYPE | BEARING |
| MAXIMUM STARTING TORQUE | 0.20 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 6.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO +100.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 95.0 SINGLE SECTION |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED, UNDERCUT |
| SHAFT DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHAFT LENGTH | 0.357 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.219 INCHES NOMINAL |
| UNDERCUT LENGTH | 0.157 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 340.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 340.0 NOMINAL |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| OVERALL LENGTH | 1.107 INCHES NOMINAL |
| OVERALL DIAMETER | 0.648 INCHES MINIMUM AND 0.653 INCHES MAXIMUM |
