NSN 5905-00-126-1642
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-126-1642 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 138C572M01, 3250L1502M, 3250L-1-502M, 5905-00-126-1642, 00-126-1642, 5905001261642, 001261642
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 22, 1968 | 00-126-1642 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

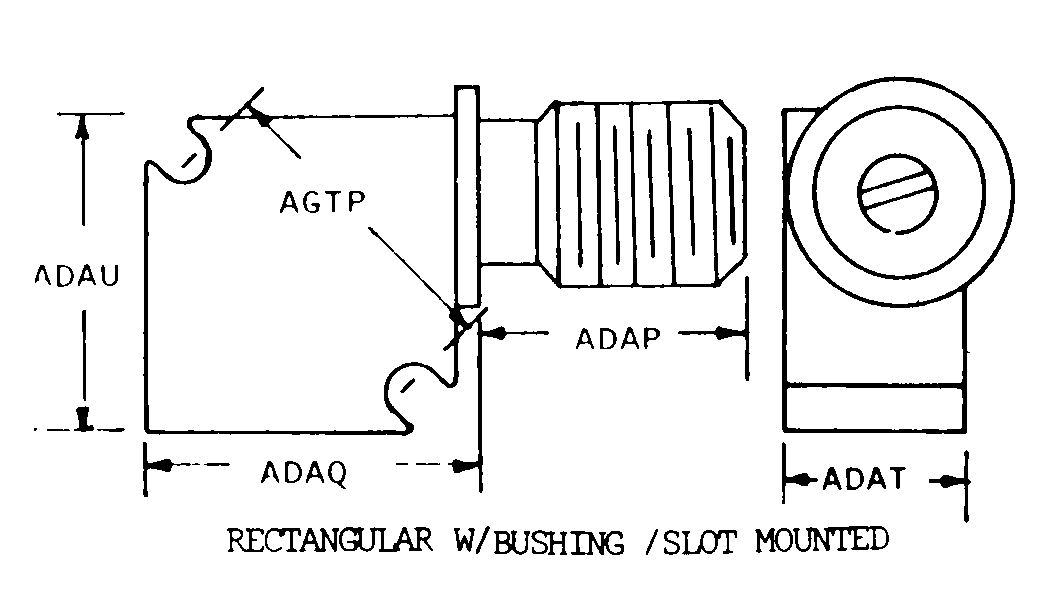

RECTANGULAR W/BUSHING/SLOT MOUNTED
Cross Reference | NSN 5905-00-126-1642
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 138C572M01 | 80294 | BOURNS INSTRUMENTS INC |
| 3250L-1-502M | 32997 | BOURNS, INC. |
Technical Data | NSN 5905-00-126-1642
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 5.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STARTING TORQUE | 5.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 5.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -50.0 TO +50.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR W/BUSHING/SLOT MOUNTED |
| BODY LENGTH | 0.540 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| BODY WIDTH | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| BODY HEIGHT | 0.580 INCHES MINIMUM AND 0.600 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.513 INCHES MINIMUM AND 0.526 INCHES MAXIMUM |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 9000.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 9000.0 NOMINAL |
| MOUNTING METHOD | BY ANY ACCEPTABLE AND JN ANY ACCEPTABLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING SLOT WIDTH | 0.093 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| SCREW THREAD DIAMETER | 0.190 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FRAGILITY FACTOR | MODERATELY RUGGED |
