NSN 5905-00-123-5277
Part Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-123-5277 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: BA004152, BA004-152, 311013100, 311-0131-00, 5905-00-123-5277, 00-123-5277, 5905001235277, 001235277
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 01, 1968 | 00-123-5277 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

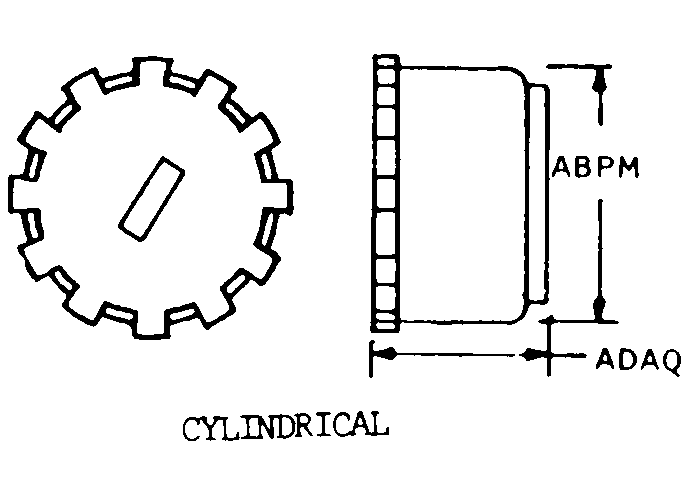

CYLINDRICAL
Cross Reference | NSN 5905-00-123-5277
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BA004-152 | 71590 | CRL COMPONENTS INC |
| 311-0131-00 | 80009 | TEKTRONIX, INC.DBA TEKTRONIX |
Technical Data | NSN 5905-00-123-5277
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO +20.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.2 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 85.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL |
| BODY DIAMETER | 0.720 INCHES MAXIMUM |
| BODY LENGTH | 0.265 INCHES NOMINAL |
| ACTUATOR TYPE | INTEGRAL KNOB |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 260.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 260.0 NOMINAL |
| MOUNTING METHOD | THREADED STUD |
| MOUNTING FACILITY QUANTITY | 1 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| SCREW THREAD DIAMETER | 0.073 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| MOUNTING STUD LENGTH | 0.145 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
