NSN 5905-00-122-3255
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-122-3255 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: WN103, H2195107368, H2195-1073-68, 12165, 5905-00-122-3255, 00-122-3255, 5905001223255, 001223255
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 28, 1968 | 00-122-3255 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES
CYLINDRICAL BUSHING MOUNTED

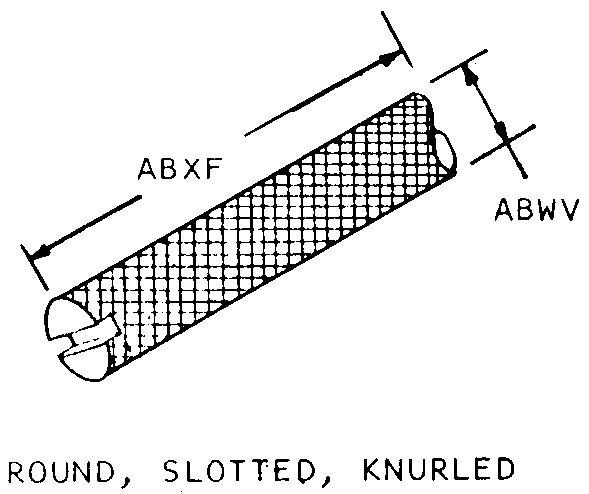

ROUND, SLOTTED, KNURLED
Cross Reference | NSN 5905-00-122-3255
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WN103 | 71590 | CRL COMPONENTS INC |
| H2195-1073-68 | 00062 | MARINE ELECTRIC SYSTEMS, INC.DBA MESYS |
| 12165 | 59559 | POWER CONTROL DEVICES INC |
Technical Data | NSN 5905-00-122-3255
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO +10.0 SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STOP TORQUE | 224.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -170.0 TO +170.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 5.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 105.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 1.156 INCHES NOMINAL |
| BODY LENGTH | 0.562 INCHES NOMINAL |
| BODY HEIGHT | 1.500 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED, KNURLED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 295.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 288.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 3 OCLOCK AND AT 9 OCLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| OVERALL LENGTH | 1.312 INCHES NOMINAL |
