NSN 5905-00-115-8057
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-115-8057 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 42851810, 428518-10, 99362K43012, 9936-2K-43012, 809176202, 80-9-176-202, 5905-00-115-8057, 00-115-8057, 5905001158057, 001158057
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 20, 1968 | 00-115-8057 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

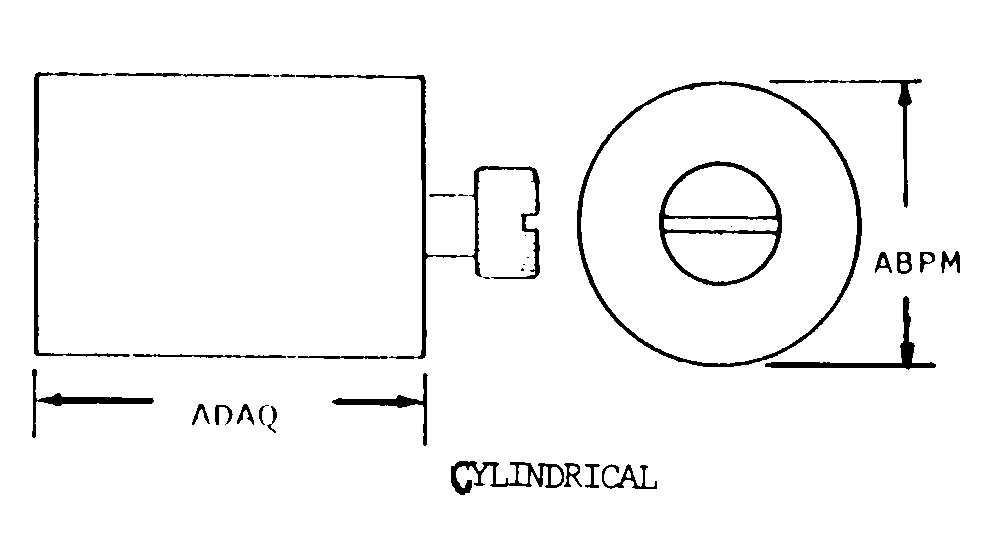

CYLINDRICAL
ROUND, SLOTTED
Cross Reference | NSN 5905-00-115-8057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 428518-10 | 89305 | SIMMONDS PRECISION PRODUCTS INC |
| 9936-2K-43012 | 84048 | VERNITRON CORPVRN INTERNATIONAL DIV |
| 80-9-176-202 | 02111 | VISHAY THIN FILM, LLCDBA VISHAY SPECTORAL ELECTRONICS |
Technical Data | NSN 5905-00-115-8057
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 2.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STARTING TORQUE | 7.50 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 7.50 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -50.0 TO +50.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.25 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 50.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |
| BODY STYLE | CYLINDRICAL |
| BODY DIAMETER | 0.360 INCHES NOMINAL |
| BODY LENGTH | 0.250 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED |
| SHAFT DIAMETER | 0.100 INCHES NOMINAL |
| SHAFT LENGTH | 0.031 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 320.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 320.0 NOMINAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
