NSN 5905-00-115-2001
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-115-2001 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 1080061002, 108-0061-002, 1001183, 100-1183, 5905-00-115-2001, 00-115-2001, 5905001152001, 001152001
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 20, 1968 | 00-115-2001 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

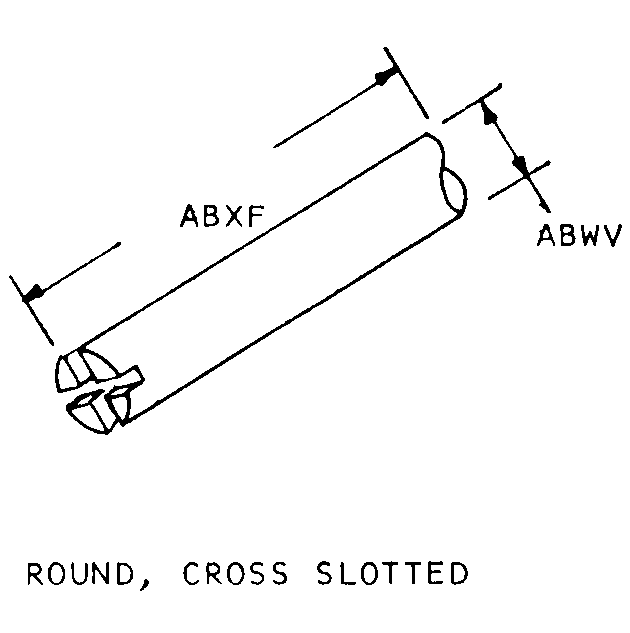

ROUND, CROSS SLOTTED
Cross Reference | NSN 5905-00-115-2001
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108-0061-002 | 97896 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 100-1183 | 02111 | VISHAY THIN FILM, LLCDBA VISHAY SPECTORAL ELECTRONICS |
Technical Data | NSN 5905-00-115-2001
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -3.0 TO +3.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION INDEPENDENT LINEARITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION LINEAR |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -0.50 TO +0.50 SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 0.60 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 0.30 INCH-OUNCES |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 2.75 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| FIXED TAP QUANTITY PER SECTION | 1 SINGLE SECTION |
| TAP LOCATION TOLERANCE PER SECTION | -1.0 TO +1.0 DEG ANGULAR ROTATION SINGLE SECTION |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, CROSS SLOTTED |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.562 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CONTINUOUS MOTION |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 352.0 NOMINAL |
| MOUNTING METHOD | CLAMP RING |
| TERMINAL TYPE AND QUANTITY | 4 SOLDER STUD |
