NSN 5905-00-114-8697
Part Details | WIRE WOUND FIXED RESISTOR
5905-00-114-8697 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Alternate Parts: 62468, 11003H54A26, RA, 5905-00-114-8697, 00-114-8697, 5905001148697, 001148697
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-114-8697 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
REFERENCE DRAWINGS & PICTURES

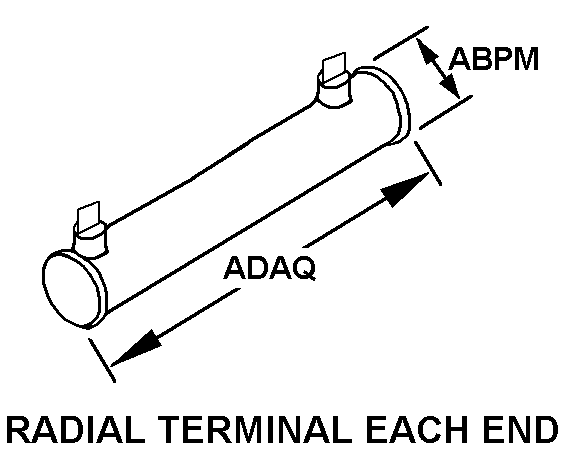

RADIAL TERMINAL EACH END
Cross Reference | NSN 5905-00-114-8697
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 62468 | 81782 | ALMON JOHNSON LTD |
| 11003H54A26 | 15605 | EATON CORPOPNS & TECHNICAL CENTER |
| RA | 15605 | EATON CORPOPNS & TECHNICAL CENTER |
Technical Data | NSN 5905-00-114-8697
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 350.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | M10.000/P10.000 |
| POWER DISSIPATION RATING IN WATTS | 75.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 315.0 |
| INCLOSURE METHOD | ENCASED |
| STYLE DESIGNATOR | RADIAL TERMINAL EACH END |
| BODY LENGTH | 5.688 INCHES NOMINAL |
| TERMINAL TYPE | TAB W/SCREW |
| TERMINAL LENGTH | 0.812 INCHES NOMINAL |
| TERMINAL WIDTH | 0.312 INCHES NOMINAL |
