NSN 5905-00-114-4418
Part Details | WIRE WOUND FIXED RESISTOR
5905-00-114-4418 A resistor whose ohmic value cannot be adjusted or varied. The resistance element consists of high resistance wire (or ribbon) either wound on an insulated form or constructed so as to be self supporting. Opposition to the flow of current is an inherent property of the resistance wire and is manifest by the heat dissipation in the resistor. Excludes SUPPRESSOR, IGNITION INTERFERENCE.
Alternate Parts: 2063, 1 34DN57N3000HMSP0RM5PCT, 1 3-4DN57N3000HMSP0RM5PCT, 5905-00-114-4418, 00-114-4418, 5905001144418, 001144418
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 07, 1968 | 00-114-4418 | 00010 ( RESISTOR, FIXED, WIRE WOUND ) |
REFERENCE DRAWINGS & PICTURES

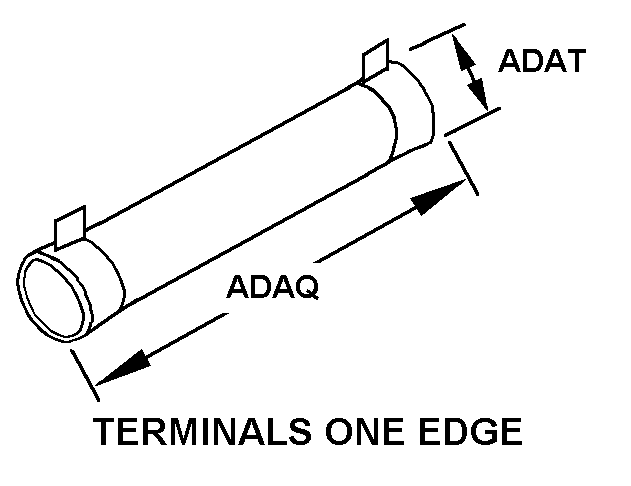

TERMINALS ONE EDGE
Cross Reference | NSN 5905-00-114-4418
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2063 | 44655 | HEICO OHMITE, L.L.C.DBA OHMITE MANUFACTURING |
| 1 3-4DN57N3000HMSP0RM5PCT | 44655 | HEICO OHMITE, L.L.C.DBA OHMITE MANUFACTURING |
Technical Data | NSN 5905-00-114-4418
| Characteristic | Specifications |
|---|---|
| ELECTRICAL RESISTANCE | 300.000 OHMS |
| RESISTANCE TOLERANCE IN PERCENT | M5.000/P5.000 |
| POWER DISSIPATION RATING IN WATTS | 12.000 FREE AIR |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER | 340.0 |
| INCLOSURE METHOD | ENCAPSULATED |
| STYLE DESIGNATOR | TERMINALS ONE EDGE |
| BODY LENGTH | 1.750 INCHES NOMINAL |
| BODY WIDTH | 0.313 INCHES NOMINAL |
| BODY HEIGHT | 0.313 INCHES NOMINAL |
| TERMINAL TYPE | TAB, SOLDER LUG |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TERMINAL LENGTH | 0.438 INCHES NOMINAL |
| TERMINAL WIDTH | 0.188 INCHES NOMINAL |
