NSN 5905-00-107-0650
Part Details | NONPRECISION WIRE WOUND VARIABLE RESISTOR
5905-00-107-0650 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus of minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, NONWIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND, PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Alternate Parts: 3290PCY9102, 3290P-CY9-102, 3280P546102, 3280P546-102, 3290PK19102, 3290P-K19-102, 6083668, 5905-00-107-0650, 00-107-0650, 5905001070650, 001070650
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUL 22, 1968 | 00-107-0650 | 37406 ( RESISTOR, VARIABLE, WIRE WOUND, NONPRECISION ) |
REFERENCE DRAWINGS & PICTURES

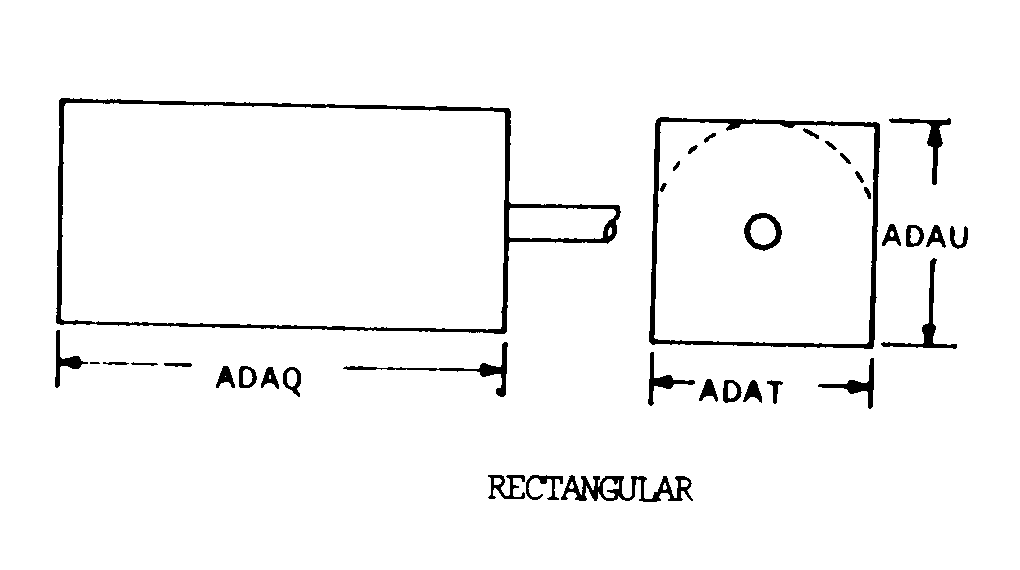

RECTANGULAR
ROUND, SLOTTED
Cross Reference | NSN 5905-00-107-0650
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3290P-CY9-102 | 80294 | BOURNS INSTRUMENTS INC |
| 3280P546-102 | 80294 | BOURNS INSTRUMENTS INC |
| 3290P-K19-102 | 80294 | BOURNS INSTRUMENTS INC |
| 6083668 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5905-00-107-0650
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -5.0 TO +5.0 SINGLE SECTION |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -70.0 TO +70.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| BODY STYLE | RECTANGULAR |
| BODY LENGTH | 0.390 INCHES MAXIMUM |
| BODY WIDTH | 0.390 INCHES MAXIMUM |
| BODY HEIGHT | 0.220 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND, SLOTTED |
| SHAFT DIAMETER | 0.040 INCHES NOMINAL |
| SHAFT LENGTH | 0.090 INCHES NOMINAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.200 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.100 INCHES NOMINAL |
| TERMINAL LOCATION | LOWER ADJACENT SIDE SINGLE ROW |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 03640-6083668 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| OVERALL LENGTH | 0.480 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.520 INCHES NOMINAL |
| OVERALL WIDTH | 0.430 INCHES NOMINAL |
