NSN 5821-01-127-0636
Part Details | BLANK PANEL
5821-01-127-0636 A panel designed to fill a space not occupied by actual operating components, and may have instructions, component designations, or component identifications etched or printed thereon.
Alternate Parts: 6355467001, 635-5467-001, 5821-01-127-0636, 01-127-0636, 5821011270636, 011270636
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | FEB 22, 1982 | 01-127-0636 | 15195 ( PANEL, BLANK ) |

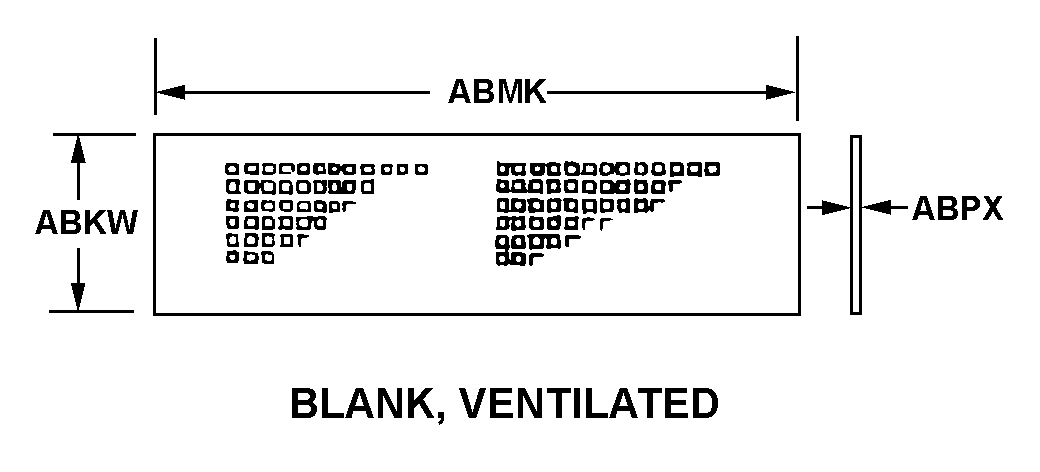

REFERENCE DRAWINGS & PICTURES
BLANK, VENTILATED
Cross Reference | NSN 5821-01-127-0636
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 635-5467-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5821-01-127-0636
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, VENTILATED |
| OVERALL HEIGHT | 3.500 INCHES NOMINAL |
| OVERALL WIDTH | 19.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.190 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 8,H32 FED SPEC SINGLE MATERIAL RESPONSE |
| MOUNTING PROVISION | SLOT |
