NSN 5365-00-066-9530
Part Details | MACHINE THREAD PLUG
5365-00-066-9530 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 2040762903, 204-076-290-3, 204076290003, 204-076-290-003, 5365-00-066-9530, 00-066-9530, 5365000669530, 000669530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-066-9530 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES
PLAIN

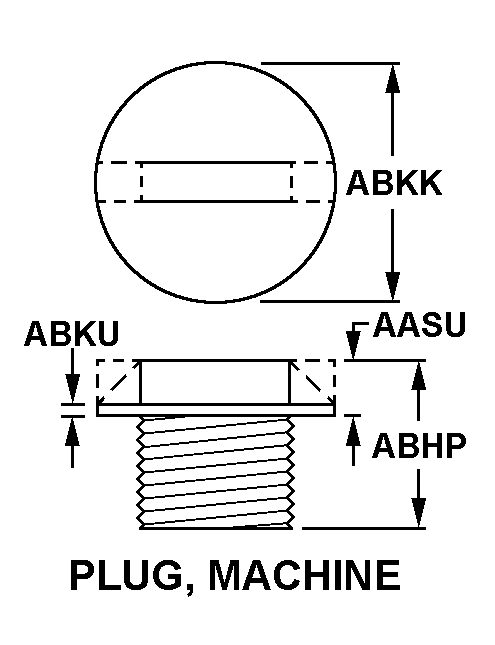

PLUG, MACHINE
Cross Reference | NSN 5365-00-066-9530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-076-290-3 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-076-290-003 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5365-00-066-9530
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A PLUG, MACHINE |
| HEAD HEIGHT | 0.760 INCHES NOMINAL |
| OVERALL LENGTH | 1.360 INCHES NOMINAL |
| FLANGE DIAMETER | 1.625 INCHES NOMINAL |
| FLANGE THICKNESS | 0.250 INCHES NOMINAL |
| BLEEDER HOLE CENTER TO THREADED END DISTANCE | 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| BLEEDER HOLE DIAMETER | 0.062 INCHES NOMINAL |
| CONNECTION STYLE | PLAIN |
| BODY CORE DIAMETER | 0.188 INCHES NOMINAL |
| CORE DEPTH | 1.180 INCHES NOMINAL |
| SPECIAL FEATURES | BODY CORE COUNTERBORED 0.843 IN. ID BY 0.44 IN. DEEP AND CONTAINS A BELL SHAPED BAFFLE CEMENTED INTO COUNTERBORE |
