NSN 5365-00-061-6117
Part Details | MACHINE THREAD PLUG
5365-00-061-6117 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Alternate Parts: 9524761, 9524761, 5365-00-061-6117, 00-061-6117, 5365000616117, 000616117
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 15, 1980 | 00-061-6117 | 03801 ( PLUG, MACHINE THREAD ) |
REFERENCE DRAWINGS & PICTURES

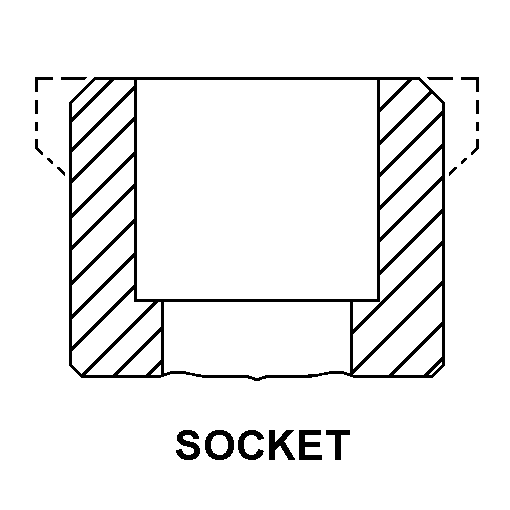

SOCKET
PLUG, MACHINE
Cross Reference | NSN 5365-00-061-6117
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9524761 | 73842 | GOODYEAR TIRE AND RUBBER CO THE |
| 9524761 | 0B9R9 | MEGGITT AIRCRAFT BRAKING SYSTEMSCORPORATION |
Technical Data | NSN 5365-00-061-6117
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 PLUG, MACHINE |
| HEAD HEIGHT | 0.329 INCHES NOMINAL |
| OVERALL LENGTH | 0.750 INCHES NOMINAL |
| CONNECTION STYLE | SOCKET |
