NSN 5365-00-054-0643
Part Details | NONMETALLIC BUSHING
5365-00-054-0643 An item, made of rubber or plastic, usually cylindrical, with or without a flange, having one or more holes extending through its entire length, usually parallel to its axis. The overall length must exceed 25 percent of its diameter or a distance across the peripheral flats for items without a flange. For items formed of other material see BUSHING, SLEEVE. Excludes BUMPER, NONMETALLIC and GROMMET NONMETALLIC.
Alternate Parts: 5365-00-054-0643, 00-054-0643, 5365000540643, 000540643
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-054-0643 | 39929 ( BUSHING, NONMETALLIC ) |
REFERENCE DRAWINGS & PICTURES

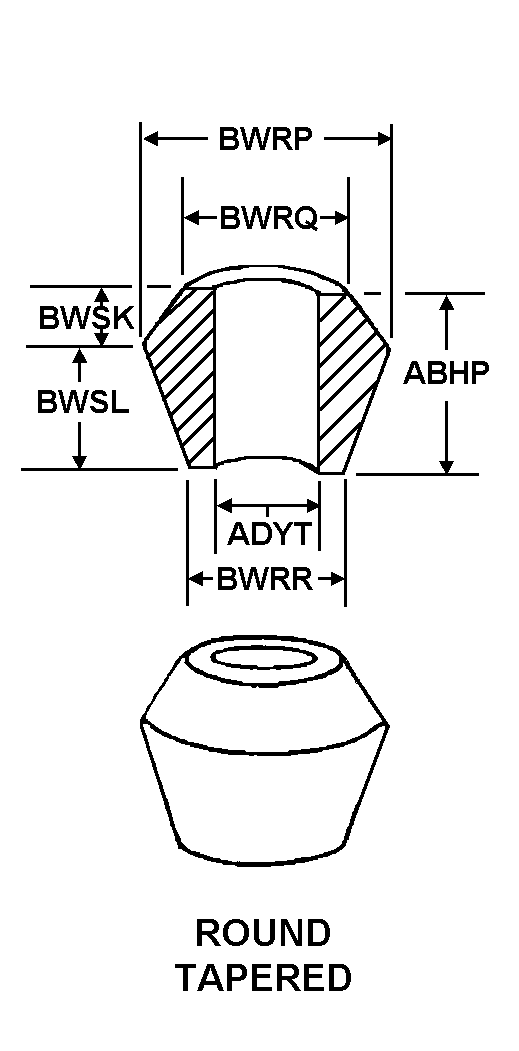

ROUND TAPERED
Cross Reference | NSN 5365-00-054-0643
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 5365-00-054-0643
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER BUTADIENE-ACRYLONITRILE CLASS NBR |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-417, TYPE 2, CLASS SB, GRADE SB515ABEF MIL STD SINGLE MATERIAL RESPONSE |
| DESIGN TYPE | SINGLE CENTRALLY LOCATED HOLE |
| STYLE DESIGNATOR | ROUND TAPERED |
| OVERALL LENGTH | 0.688 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.438 INCHES NOMINAL |
| TAPERED BODY LARGEST DIAMETER | 1.125 INCHES NOMINAL |
| TAPERED BODY SMALLEST DIAMETER | 0.875 INCHES NOMINAL |
| LONGER TAPER SMALLEST DIAMETER | 0.875 INCHES NOMINAL |
| TAPERED PORTION HEIGHT | 0.125 INCHES NOMINAL |
| BOTTOM TAPERED PORTION HEIGHT | 0.562 INCHES NOMINAL |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM DUROMETER AND 55.0 MAXIMUM DUROMETER |
