NSN 5360-00-340-0404
Part Details | COMPRESSION HELICAL SPRING
5360-00-340-0404 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: HC5461, 5360-00-340-0404, 00-340-0404, 5360003400404, 003400404
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-340-0404 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
REFERENCE DRAWINGS & PICTURES

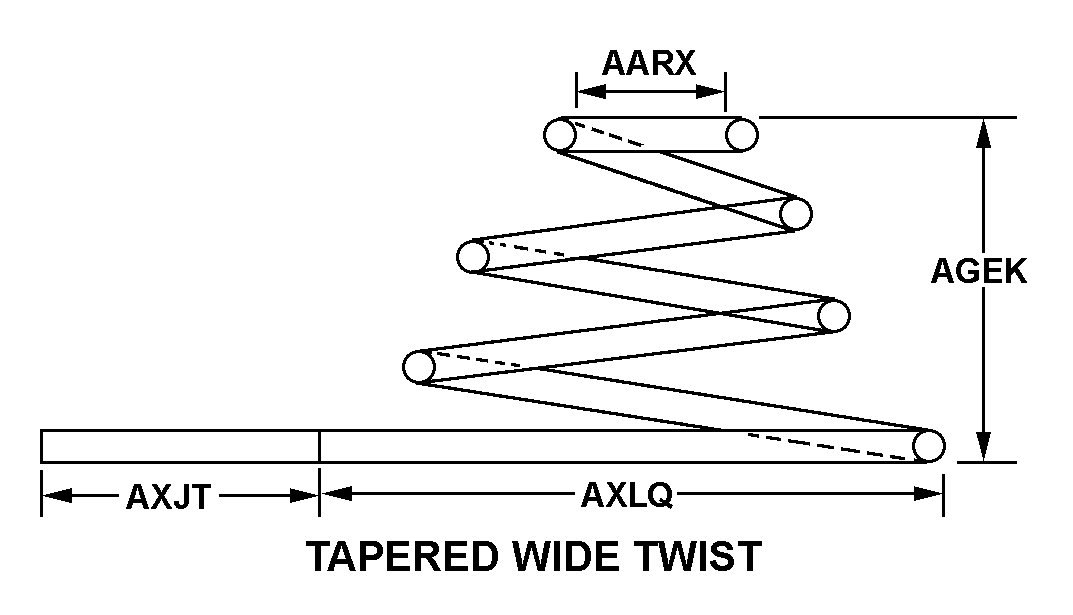

TAPERED WIDE TWIST
Cross Reference | NSN 5360-00-340-0404
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC5461 | 00724 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5360-00-340-0404
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED WIDE TWIST |
| INSIDE DIAMETER | 0.110 INCHES NOMINAL |
| SPRING FREE LENGTH | 0.190 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.275 INCHES NOMINAL |
| COIL HELIX DIRECTION | L$G |
| LOAD RATING | 0.280 POUNDS MINIMUM AND 0.340 POUNDS MAXIMUM |
| COIL QUANTITY | 4 |
| SPRING LENGTH UNDER LOAD | 0.130 INCHES NOMINAL |
