NSN 5360-00-335-0320
Part Details | TORSION SPIRAL SPRING
5360-00-335-0320 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: K8967867, 896786P1, 5360-00-335-0320, 00-335-0320, 5360003350320, 003350320
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-335-0320 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

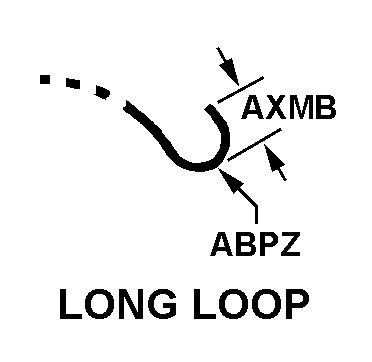

LONG LOOP
Cross Reference | NSN 5360-00-335-0320
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| K8967867 | 24446 | GENERAL ELECTRIC COMPANY |
| 896786P1 | 03350 | GENERAL ELECTRIC COMPANYDBA GE STRUCTURED SERVICES DIV |
Technical Data | NSN 5360-00-335-0320
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LONG LOOP |
| END RADIUS | 0.125 INCHES NOMINAL |
| HUB SIZE | 0.313 INCHES NOMINAL |
| HUB END SIZE | 0.250 INCHES NOMINAL |
| END LENGTH | 0.750 INCHES NOMINAL |
| STOCK WIDTH | 0.250 INCHES NOMINAL |
| STOCK THICKNESS | 0.040 INCHES NOMINAL |
| COIL QUANTITY | 4-1/2 |
