NSN 5360-00-332-2021
Part Details | COMPRESSION HELICAL SPRING
5360-00-332-2021 An open coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, designed to provide resistance to compression forces. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature) and SPRING, REINFORCING, HOSE.
Alternate Parts: 803761, 5360-00-332-2021, 00-332-2021, 5360003322021, 003322021
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-332-2021 | 04226 ( SPRING, HELICAL, COMPRESSION ) |
REFERENCE DRAWINGS & PICTURES

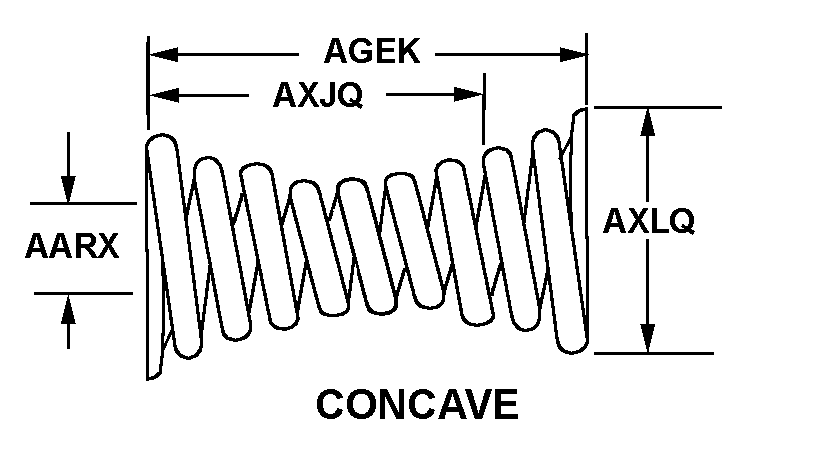

CONCAVE
Cross Reference | NSN 5360-00-332-2021
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 803761 | 06141 | L3 AVIATION PRODUCTS, INC. |
Technical Data | NSN 5360-00-332-2021
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONCAVE |
| INSIDE DIAMETER | 0.135 INCHES NOMINAL |
| SPRING FREE LENGTH | 10.000 INCHES NOMINAL |
| SPRING SOLID LENGTH | 0.720 INCHES NOMINAL |
| SPRING SOLID OUTSIDE DIAMETER | 0.168 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.168 INCHES NOMINAL |
| COIL HELIX DIRECTION | L$G |
