NSN 5360-00-326-5946
Part Details | TORSION SPIRAL SPRING
5360-00-326-5946 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: 180A, 6201007010, 620-10-0701-0, 5360-00-326-5946, 00-326-5946, 5360003265946, 003265946
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-326-5946 | 04229 ( SPRING, SPIRAL, TORSION ) |

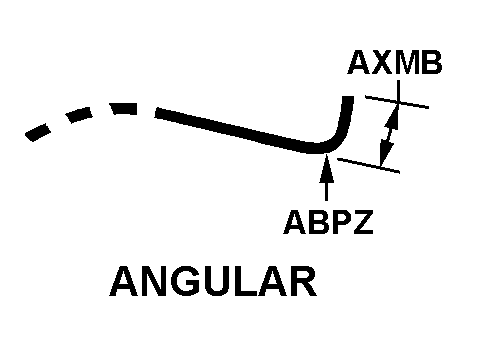

REFERENCE DRAWINGS & PICTURES
ANGULAR
Cross Reference | NSN 5360-00-326-5946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 180A | 56988 | MATTHEW WARREN, INC.DBA CENTURY SPRING |
| 620-10-0701-0 | 46175 | PEERLESS-WINSMITH, INC.DBA PEERLESS WINSMITH |
Technical Data | NSN 5360-00-326-5946
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGULAR |
| END RADIUS | 0.016 INCHES NOMINAL |
| HUB SIZE | 0.344 INCHES NOMINAL |
| HUB END SIZE | 0.406 INCHES NOMINAL |
| HUB END SPUR LENGTH | 0.094 INCHES NOMINAL |
| END LENGTH | 0.094 INCHES NOMINAL |
| STOCK WIDTH | 0.250 INCHES NOMINAL |
| STOCK THICKNESS | 0.164 INCHES NOMINAL |
