NSN 5360-00-303-5013
Part Details | EXTENSION HELICAL SPRING
5360-00-303-5013 An open-or close-coiled spring, wound in various forms and from different shapes and types of materials and finished at the ends, so designed to provide resistance to pulling forces. The close-coiled springs may incorporate the special feature of initial tension created between the coils when wound so that an initial load must be applied to separate them. Excludes SPRING, REINFORCING, HOSE.
Alternate Parts: 2258P328, 2258P328, 2258P328, 7696608, 2258P328, 2258P328, 2258P328, 5360-00-303-5013, 00-303-5013, 5360003035013, 003035013
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-303-5013 | 04227 ( SPRING, HELICAL, EXTENSION ) |

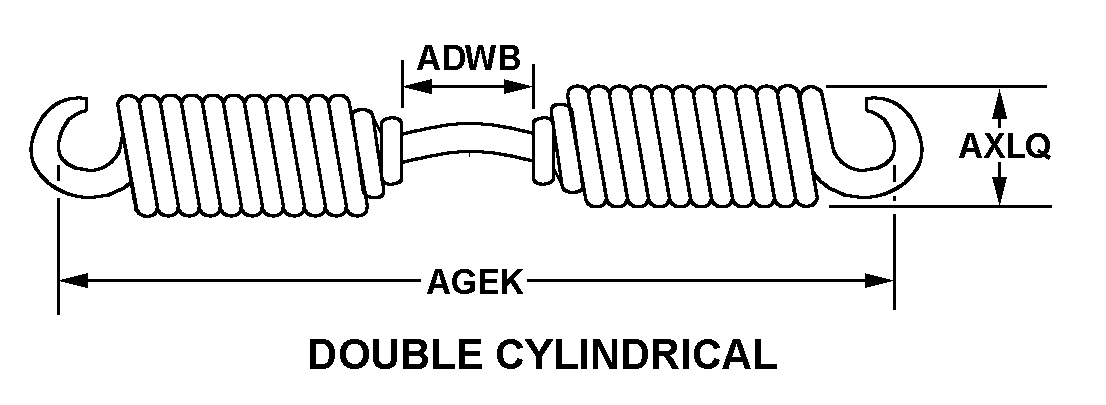

REFERENCE DRAWINGS & PICTURES
DOUBLE CYLINDRICAL
Cross Reference | NSN 5360-00-303-5013
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2258P328 | 3D6E9 | AXLETECH INTERNATIONAL, LLC |
| 2258P328 | 10152 | BUTLER MANUFACTURING COMPANY INC |
| 2258P328 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 7696608 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 2258P328 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
| 2258P328 | 65282 | WHITE MOTOR CORP |
| 2258P328 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5360-00-303-5013
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE CYLINDRICAL |
| DISTANCE BETWEEN ENDS | 1.437 INCHES NOMINAL |
| SPRING FREE LENGTH | 6.552 INCHES NOMINAL |
| SPRING FREE OUTSIDE DIAMETER | 0.812 INCHES NOMINAL |
| COIL QUANTITY | 22 |
| DESIGN TYPE | CLOSED |
