NSN 5360-00-274-7637
Part Details | TORSION SPIRAL SPRING
5360-00-274-7637 A spring consisting of a length of material wound on itself in the form of a spiral, finished at the ends and designed to exert pressure in a rotating direction around the spring axis. The material may be of various cross-sectional shapes such as round or rectangular. Excludes springs designed for thermal actuation (springs in which the torsion forces are designed to be counteracted by changes in temperature).
Alternate Parts: AD01001H02, 4D01001H02, 688J572PC55, 688J568PC55, 258910C, 19D7411ITEM1, S258910C, 258910C, 258910, 5360-00-274-7637, 00-274-7637, 5360002747637, 002747637
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 04, 1973 | 00-274-7637 | 04229 ( SPRING, SPIRAL, TORSION ) |
REFERENCE DRAWINGS & PICTURES

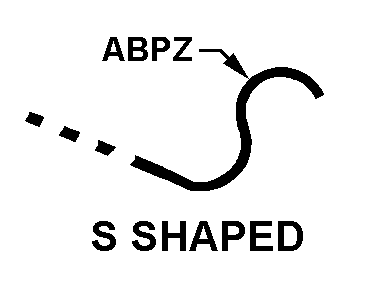

S SHAPED
Cross Reference | NSN 5360-00-274-7637
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AD01001H02 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 4D01001H02 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICALCORPORATION |
| 688J572PC55 | 65054 | WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV |
| 688J568PC55 | 65054 | WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV |
| 258910C | 65054 | WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV |
| 19D7411ITEM1 | 65054 | WESTINGHOUSE ELECTRIC CORPPOWER GENERATION-GENERATOR DIV |
| S258910C | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| 258910C | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| 258910 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5360-00-274-7637
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | S SHAPED |
| END RADIUS | 0.250 INCHES NOMINAL |
| STOCK WIDTH | 0.375 INCHES NOMINAL |
| STOCK THICKNESS | 0.032 INCHES NOMINAL |
