NSN 5355-00-579-7140
Part Details | SHAFT LOCK
5355-00-579-7140 An item designed to be attached in place of the mounting bushing nut and/or attached to the chassis or panel for a volume control, a variable capacitor or the like to permit locking the shaft in a fixed position.
Alternate Parts: 10063, 5355-00-579-7140, 00-579-7140, 5355005797140, 005797140
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-579-7140 | 67474 ( LOCK, SHAFT ) |

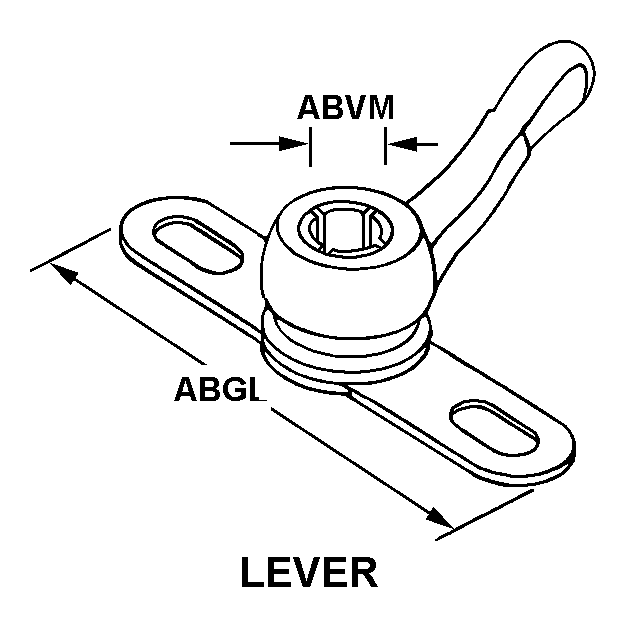

REFERENCE DRAWINGS & PICTURES
LEVER
Cross Reference | NSN 5355-00-579-7140
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10063 | 57285 | BETA LABS INCA-B AND MILLEN MFG DIV |
Technical Data | NSN 5355-00-579-7140
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LEVER |
| ACCOMMODATED SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| WIDTH | 1.750 INCHES NOMINAL |
| ATTACHMENT METHOD | ELONGATED HOLE |
