NSN 5355-00-559-9708
Part Details | DIAL STOP
5355-00-559-9708 A device used in conjunction with a dial to prevent movement beyond a fixed point. For items designed to grip a knob or dial, see DIAL-KNOB LOCK, ELECTRONIC COMPONENT.
Alternate Parts: 147148, 5355-00-559-9708, 00-559-9708, 5355005599708, 005599708
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-559-9708 | 14967 ( STOP, DIAL ) |
REFERENCE DRAWINGS & PICTURES

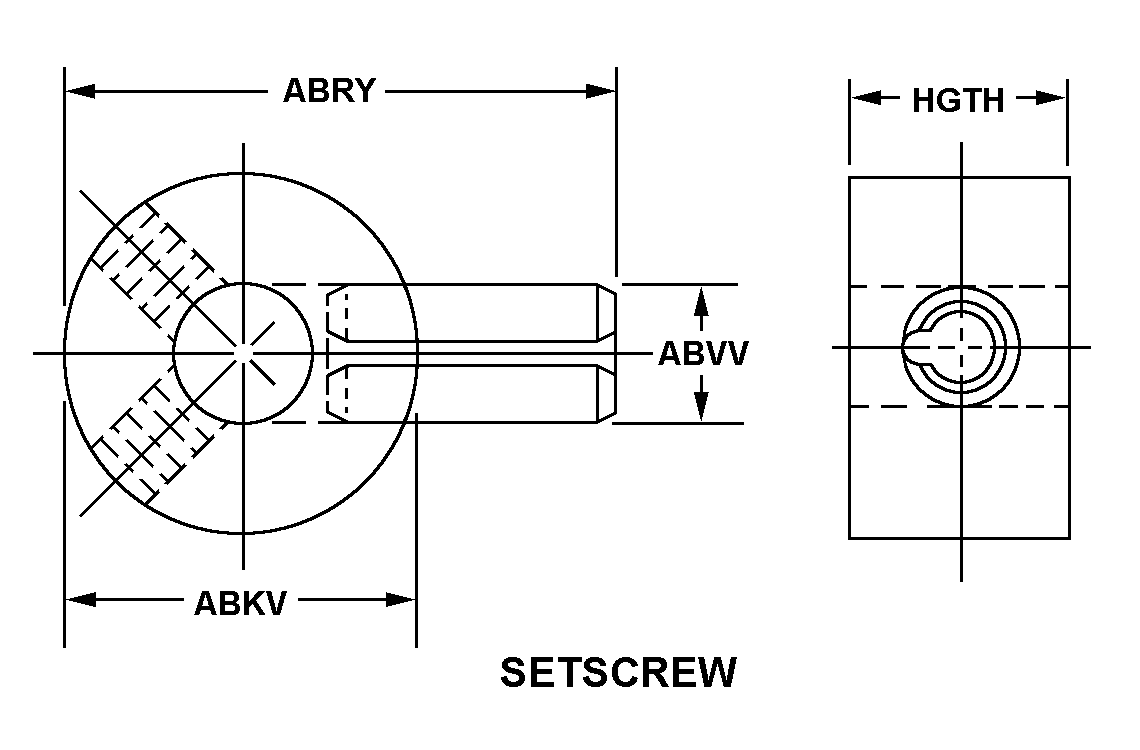

SETSCREW
Cross Reference | NSN 5355-00-559-9708
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 147148 | 99872 | ENTRON INDUSTRIES LIMITEDPARTNERSHIP |
Technical Data | NSN 5355-00-559-9708
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SETSCREW |
| WIDTH | 0.375 INCHES NOMINAL |
| LENGTH | 0.969 INCHES NOMINAL |
| HEIGHT | 0.625 INCHES NOMINAL |
| ATTACHMENT METHOD | THREADED HOLES |
| SPECIAL FEATURES | 0.625 IN. DIA COLLAR WITH 0.250 IN. DIA BY 0.500 IN. LG SPRING PIN PROTRUDING 0.344 IN. RADIALLY |
