NSN 5355-00-529-6767
Part Details | KNOB
5355-00-529-6767 An item designed to transmit manual, rotary or linear motion to other devices. May include detachable or nondetachable stud (shaft), pointer, or skirt. It may have reference markings in the form of dots, arrows, hairlines, and/or symbols which may be used in conjunction with a calibrated panel, vernier indicator, and the like to indicate the position or motion of items. For items having spokes or simulated spokes radiating from near the center to near the outside rim of the item and relatively thin round disk-shaped items 3 inches (76.2 mm) in diameter or over, see HANDWHEEL. For items calibrated in units or series of divisions to denote relative positioning of devices see DIAL, CONTROL. Excludes DOORKNOB; and HANDLE (as modified).
Alternate Parts: C3974, 5296767, 5355-00-529-6767, 00-529-6767, 5355005296767, 005296767
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-529-6767 | 03263 ( KNOB ) |
REFERENCE DRAWINGS & PICTURES

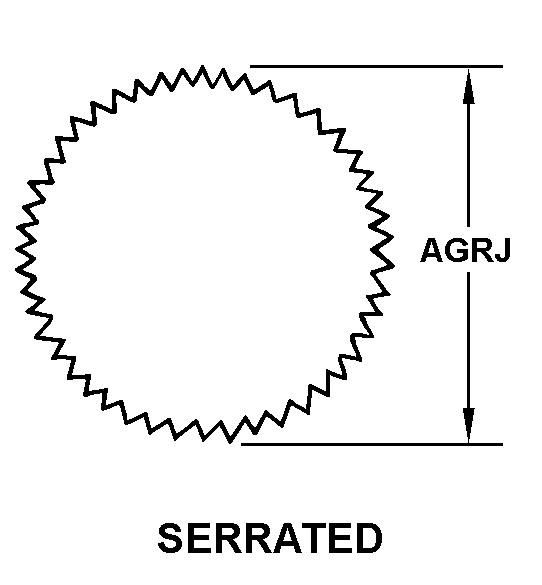

SERRATED
ROUND
Cross Reference | NSN 5355-00-529-6767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C3974 | 71000 | SACHS-BOGE OF AMERICA |
| 5296767 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5355-00-529-6767
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| OUTSIDE DIAMETER | 0.552 INCHES MINIMUM AND 0.572 INCHES MAXIMUM |
| OVERALL THICKNESS | 0.687 INCHES NOMINAL |
| ATTACHMENT METHOD | UNTHREADED STUD |
| UNTHREADED STUD STYLE | SERRATED |
| STUD DIAMETER | 0.259 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |
| STUD OVERALL DEPTH | 0.500 INCHES NOMINAL |
| GRIPPING SURFACE CONDITION | SMOOTH |
| MATERIAL | STEEL |
| COLOR | NATURAL |
