NSN 5340-00-477-2586
Part Details | ROD END LOCKING RETAINER
5340-00-477-2586 A rigid metallic item specifically designed to be installed in the grooves of a rod end. When installed it prevents rotation of a threaded fastener, such as a jam nut and the like, and must have facilities for a lock wire.
Alternate Parts: NAS1193K81, NAS1193K8-1, 5340-00-477-2586, 00-477-2586, 5340004772586, 004772586
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 09, 1974 | 00-477-2586 | 42202 ( RETAINER, ROD END LOCKING ) |

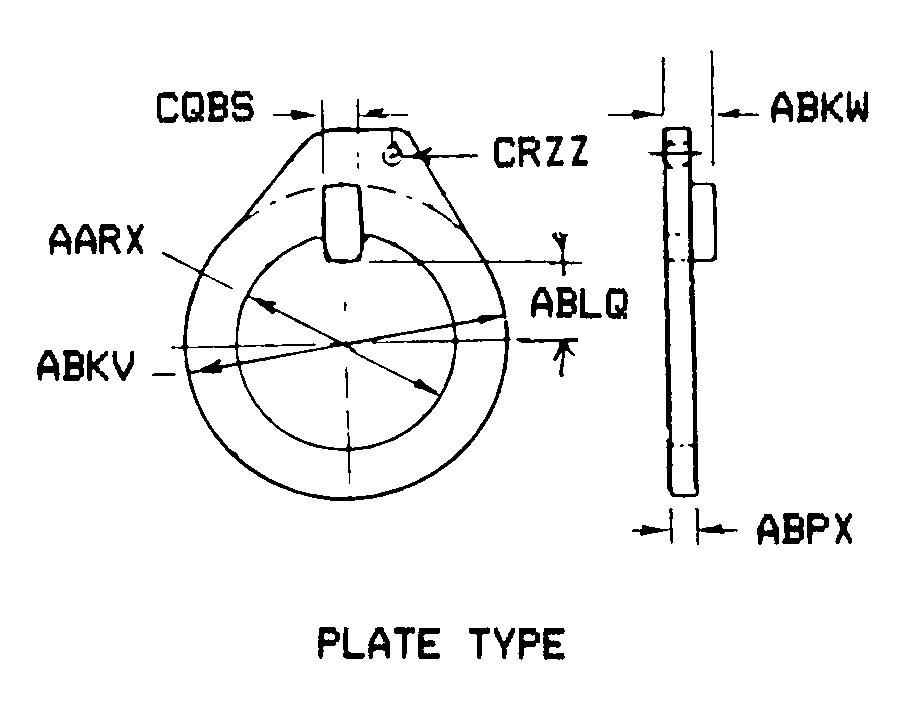

REFERENCE DRAWINGS & PICTURES
PLATE TYPE
Cross Reference | NSN 5340-00-477-2586
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1193K8-1 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5340-00-477-2586
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5355 ASSN STD SINGLE MATERIAL RESPONSE |
| MATERIAL HARDNESS RATING | 44.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | PLATE TYPE |
| INSIDE DIAMETER | 0.505 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.104 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.750 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.055 INCHES NOMINAL |
| WIRE HOLE DIAMETER | 0.062 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1193 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
