NSN 5340-00-477-0207
Part Details | NUT AND BOLT RETAINER
5340-00-477-0207 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Alternate Parts: 7956054RET, 7956-054RET, 7956054RET, 7956-054RET, 7956054RET, 7956-054RET, 5340-00-477-0207, 00-477-0207, 5340004770207, 004770207
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 25, 1971 | 00-477-0207 | 16010 ( RETAINER, NUT AND BOLT ) |
REFERENCE DRAWINGS & PICTURES

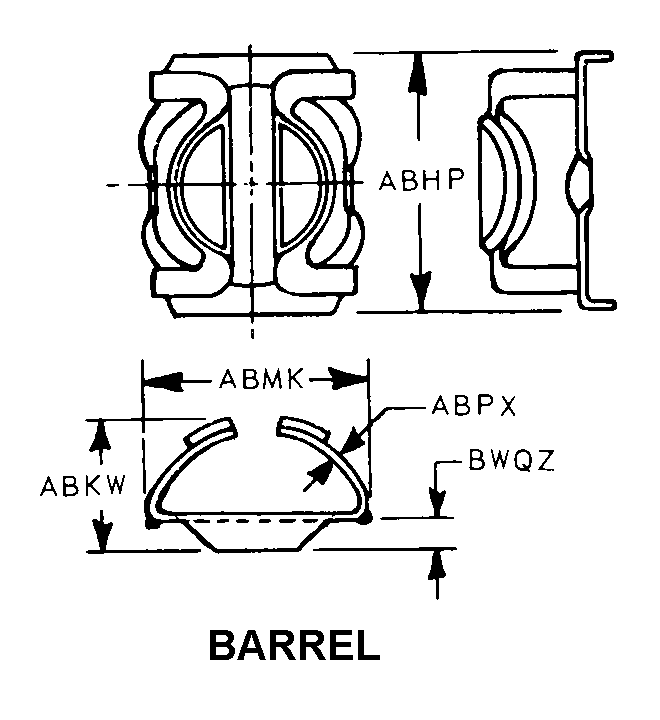

BARREL
Cross Reference | NSN 5340-00-477-0207
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7956-054RET | 13257 | AMERACE LTD |
| 7956-054RET | 72962 | HARVARD INDUSTRIES INC |
| 7956-054RET | 56878 | SPS TECHNOLOGIES, LLCDBA AEROSPACE DIVISION |
Technical Data | NSN 5340-00-477-0207
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BARREL |
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM |
| OVERALL LENGTH | 0.570 INCHES NOMINAL |
| OVERALL WIDTH | 0.474 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| GRIP HEIGHT | 0.147 INCHES NOMINAL |
