NSN 5340-00-470-3554
Part Details | NUT AND BOLT RETAINER
5340-00-470-3554 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Alternate Parts: 124279, 5340-00-470-3554, 00-470-3554, 5340004703554, 004703554
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 08, 1971 | 00-470-3554 | 16010 ( RETAINER, NUT AND BOLT ) |

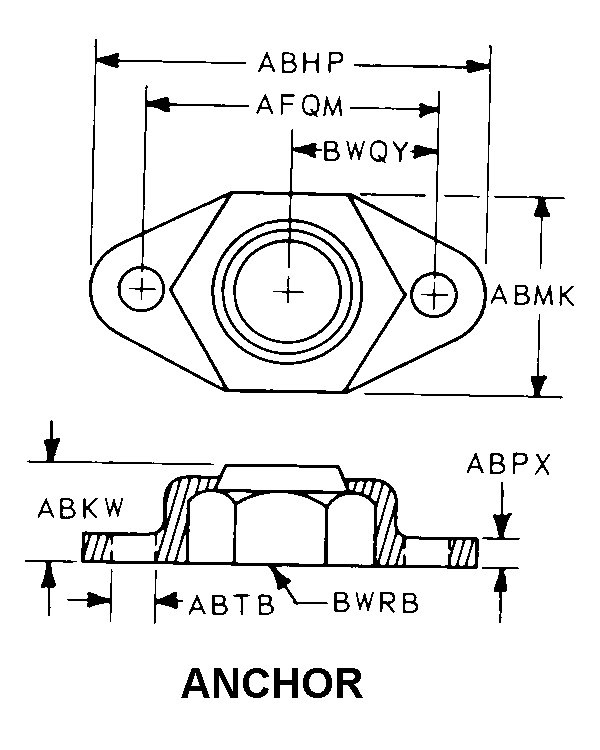

REFERENCE DRAWINGS & PICTURES
ANCHOR
Cross Reference | NSN 5340-00-470-3554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 124279 | 73168 | KIDDE TECHNOLOGIES INC.DBA FENWAL SAFETY SYSTEMS |
Technical Data | NSN 5340-00-470-3554
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANCHOR |
| MATERIAL | STEEL CORROSION RESISTING |
| OVERALL LENGTH | 1.578 INCHES NOMINAL |
| OVERALL HEIGHT | 0.143 INCHES NOMINAL |
| OVERALL WIDTH | 0.730 INCHES MINIMUM AND 0.770 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.045 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.176 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CUP AND MOUNTING HOLE | 0.583 INCHES MINIMUM AND 0.593 INCHES MAXIMUM |
