NSN 5340-00-468-0791
Part Details | HAND CRANK
5340-00-468-0791 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: 475490369107ALT4PCAK3T0M3, 475-4903-69107ALT4PCAK3T0M3, 386461PCJP3T0R3, 485475PCAK3T0M3, 485-475PCAK3T0M3, 485228PCJP3T0R3, 485-228PCJP3T0R3, 485228PCJP3Q3R3, 485-228PCJP3Q3R3, 5340-00-468-0791, 00-468-0791, 5340004680791, 004680791
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-468-0791 | 17533 ( CRANK, HAND ) |
REFERENCE DRAWINGS & PICTURES
EXTERNAL
RECESSED FLAT
COUNTER BALANCED

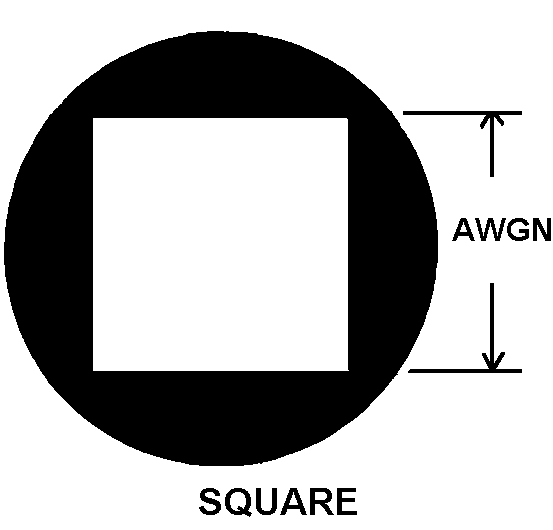

SQUARE
Cross Reference | NSN 5340-00-468-0791
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 475-4903-69107ALT4PCAK3T0M3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 386461PCJP3T0R3 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 485-475PCAK3T0M3 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 485-228PCJP3T0R3 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
| 485-228PCJP3Q3R3 | 81316 | PORTSMOUTH NAVAL SHIPYARD |
Technical Data | NSN 5340-00-468-0791
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| ARM STYLE | COUNTER BALANCED |
| CRANK THROW LENGTH | 4.000 INCHES NOMINAL |
| ARM LENGTH | 8.500 INCHES NOMINAL |
| DRIVE END STYLE | EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| SHANK HEIGHT | 3.000 INCHES NOMINAL |
| DRIVE FACILITY STYLE | SQUARE |
| OVERALL DEPTH | 0.875 INCHES NOMINAL |
| DRIVE WIDTH | 0.562 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 5.000 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | PIN |
| HANDLE STYLE | RECESSED FLAT |
| HANDLE LENGTH | 3.375 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
